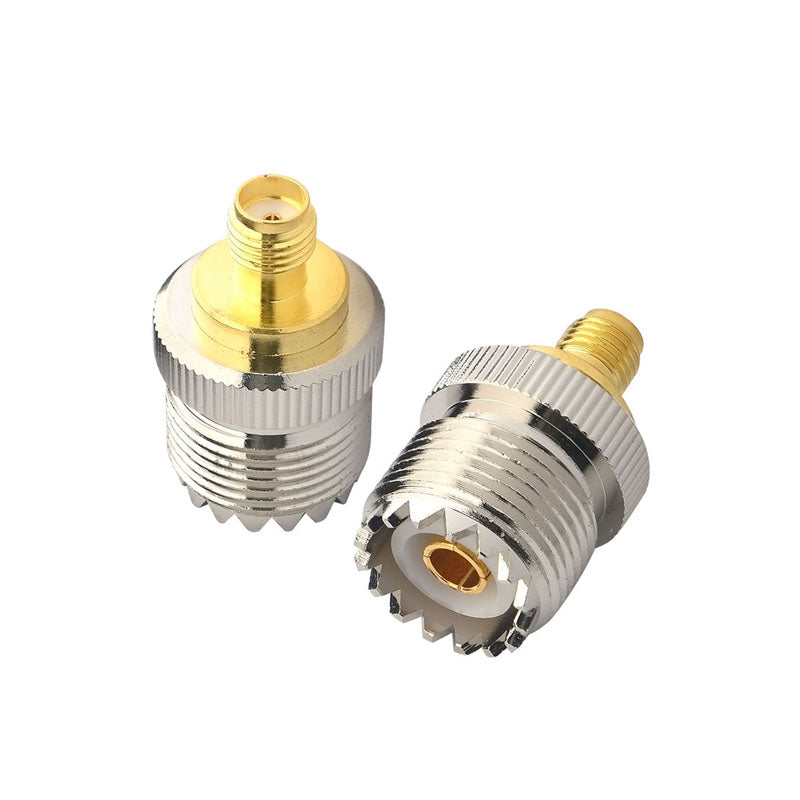

SMA Female to UHF Female RF Coaxial Adapter: A Practical Guide

When working with RF equipment, you may encounter situations where different connector types need to be interfaced. One common solution is the SMA female to UHF female coaxial adapter, which bridges the gap between SMA and UHF interfaces while maintaining signal integrity.

How It Works

This adapter consists of three key components:

1. Center Conductor – Carries the RF signal.
2. Dielectric Insulator – Provides insulation and structural support.
3. Outer Conductor – Acts as a shield to minimize interference.

The adapter uses threaded connections to securely join SMA and UHF female connectors, ensuring stable signal transmission between mismatched devices.

Key Performance Features

1. Frequency Range

• SMA connectors typically support DC to 26.5 GHz.
• UHF connectors cover DC to 3 GHz.
• This makes the adapter suitable for a wide range of applications, from low-frequency radio to higher-frequency communications.

2. Impedance Matching

• The adapter maintains a 50-ohm impedance, the standard for most RF systems.
• Proper impedance matching reduces signal reflections and power loss.

3.Low Insertion Loss & High Return Loss

• A well-made adapter minimizes insertion loss (signal weakening) and maximizes return loss (signal reflection suppression).
• This ensures efficient signal transfer with minimal degradation.

4.Durable Construction

• High-quality materials (e.g., gold-plated brass) enhance conductivity and corrosion resistance.
• Precision machining ensures a secure fit, even with repeated use.
• Some models feature anti-loosening nuts for vibration-prone environments.

Common Applications

• Connecting test equipment with different connector types.
• Adapting amateur radio gear to modern RF devices.
• Extending or modifying antenna setups without replacing cables.

Choosing the Right Adapter

• Verify frequency requirements for your application.
• Ensure proper impedance matching (50 ohms for most RF systems).
• Opt for gold-plated connectors if long-term reliability is critical.

This adapter is a simple yet essential tool for RF engineers, technicians, and hobbyists working with mixed connector systems. By selecting a high-quality model, you can maintain signal integrity while simplifying your setup.

Have questions about RF adapters? Feel free to reach out—we’re happy to help!
