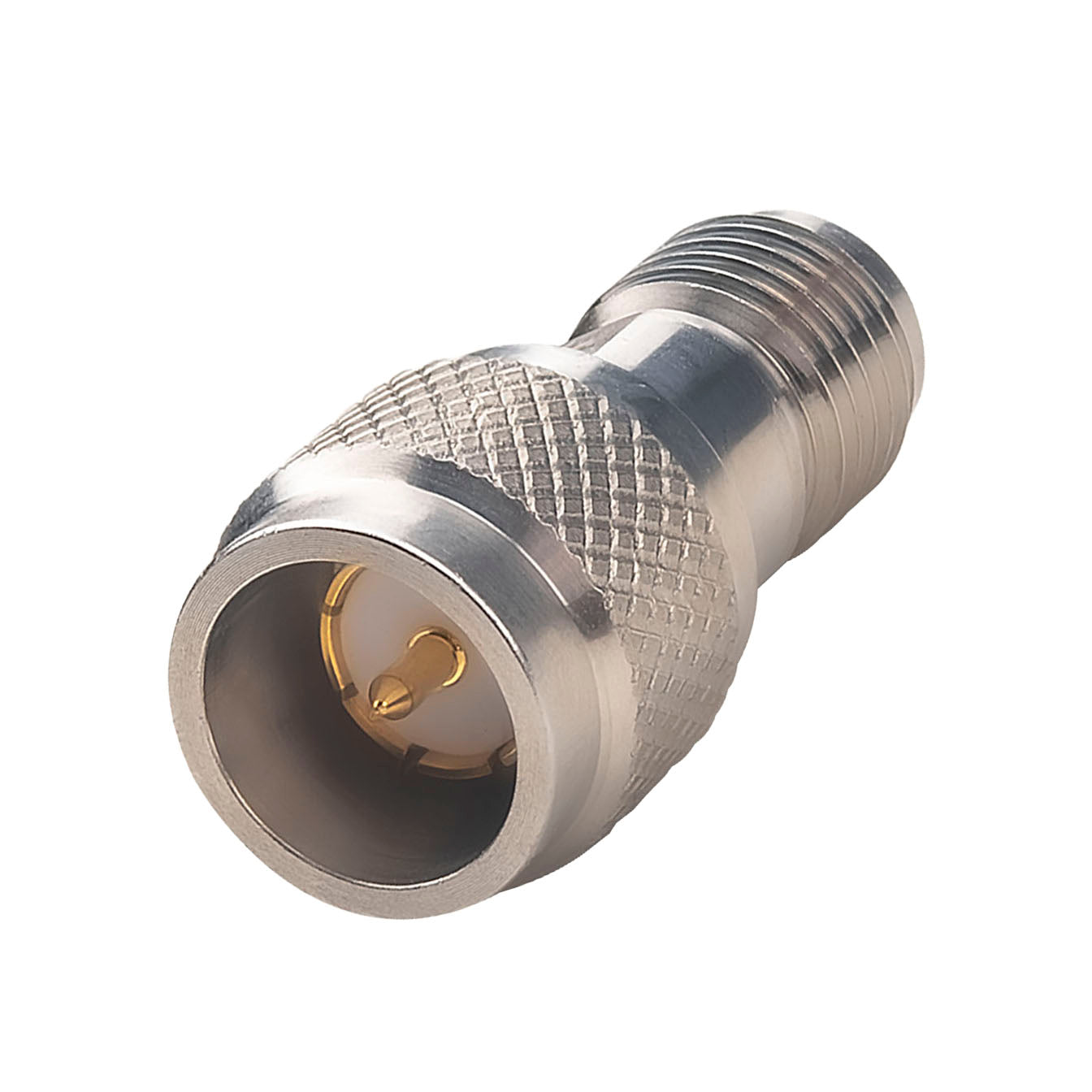

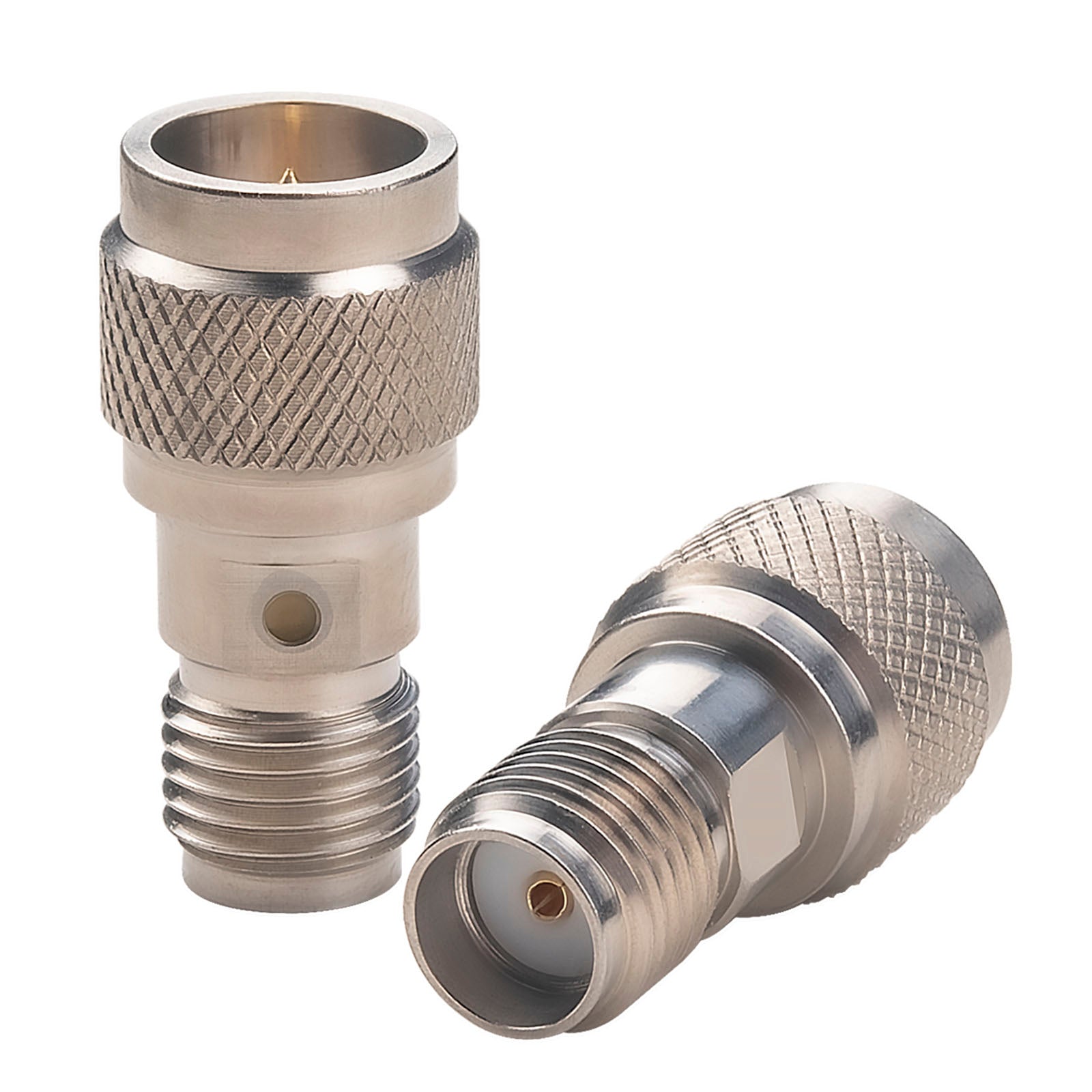

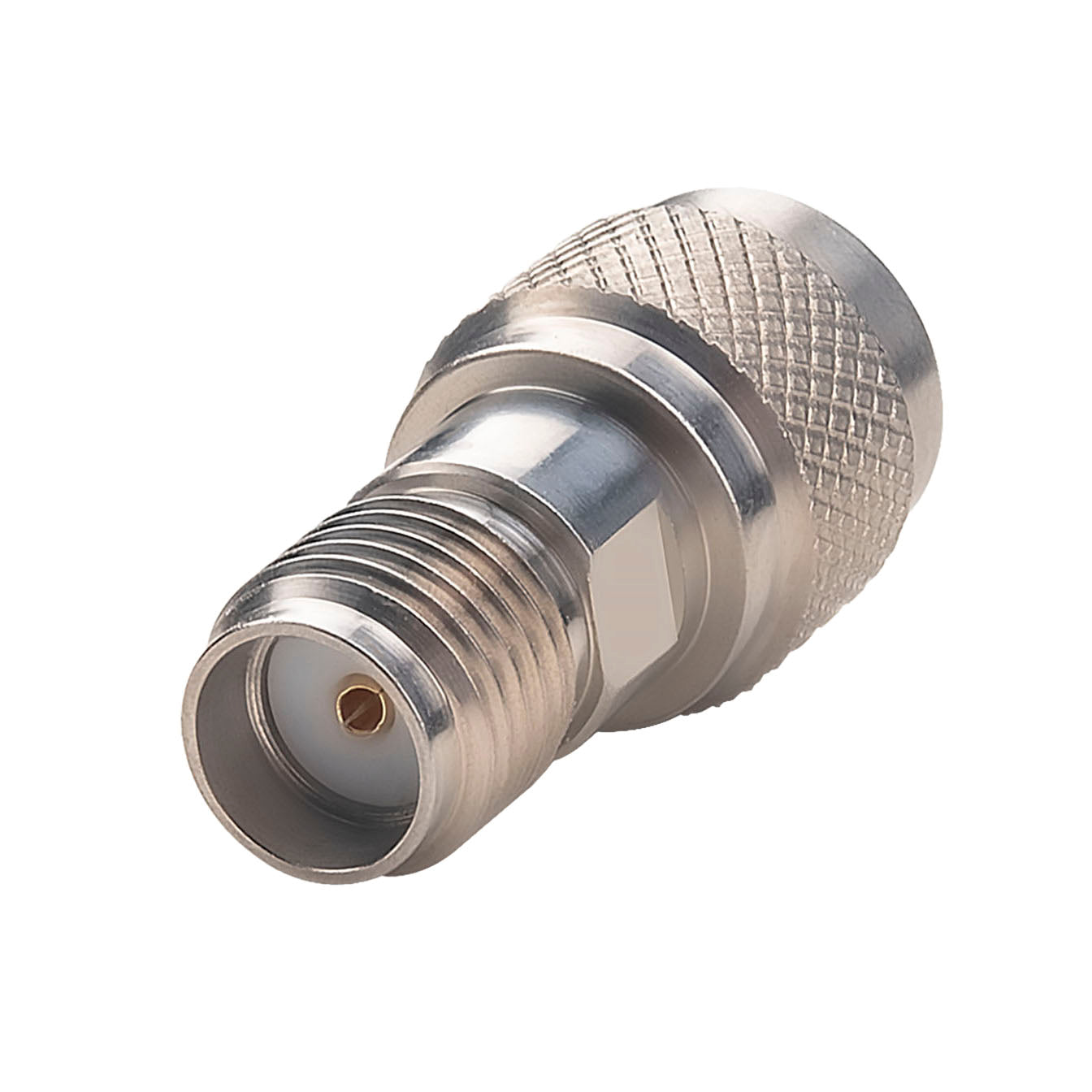

onelinkmore RF Quick SMA Coaxial Wave Connector FPV Adapter, SMA Coax Connector Type Quick Push-on SMA Male to SMA Female, Stainless Steel, DC-18GHz 50ohm
onelinkmore RF Quick SMA Coaxial Wave Connector FPV Adapter, SMA Coax Connector Type Quick Push-on SMA Male to SMA Female, Stainless Steel, DC-18GHz 50ohm
通常価格
$15.68 USD
通常価格
セール価格
$15.68 USD
単価
/
あたり
配送料はチェックアウト時に計算されます。
No reviews
受取状況を読み込めませんでした
- Durable SU303 Stainless Steel Housing: SMA Type Push-Pull Adapter Crafted from SU303 stainless steel, the adapter's robust housing not only ensures exceptional strength but also offers excellent corrosion resistance and long-lasting mechanical stability, ensuring reliable operation in various environments.
- High-Quality Beryllium Copper Inner Conductor: The SMA Male Quick Push-on to SMA Female Adapter beryllium copper material for the inner conductor ensures a consistent and stable electrical connection with its excellent elasticity and conductivity, providing sustained high signal integrity.
- Ultra-Low VSWR: The SMA very low VSWR of ≤1.2 indicates minimal energy loss and signal distortion, helping to maintain efficient signal transmission within the system and optimizing your communication and testing experience. Application for FPV antennas WI-FI Router HT radio MMDVM unit Video VTX IP camera ham radio digital amplifier SDR
- Broad Frequency Range: With an operating frequency of 0-18 GHz, this adapter covers an extremely wide range of applications, from communication base stations to RF laboratories, meeting your needs for both commercial and research purposes. Perfect Impedance Matching 50 ohm : The standard 50Ω impedance design ensures seamless integration with your equipment and systems, minimizing possible signal reflections and ensuring the pure transmission of signals.
- High-Frequency Efficiency: For high-frequency applications, this adapter maintains excellent performance, even at the high end of frequencies close to 18 GHz, still providing superior transmission quality. This SMA male quick-connect to SMA female adapter can withstand the test of harsh environments while providing precise and efficient signal conversion, making it a high-end choice that combines quality and performance.
