onelinkmore UHF Male to SMA Female Adapter 2 Pack, PL259 to SMA Jack RF Coax Connector for Baofeng UV-5R Handheld Radio SWR Meter Station SO239 Port

onelinkmore UHF Male to SMA Female Adapter 2 Pack, PL259 to SMA Jack RF Coax Connector for Baofeng UV-5R Handheld Radio SWR Meter Station SO239 Port

$6.58 USD
$6.58 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

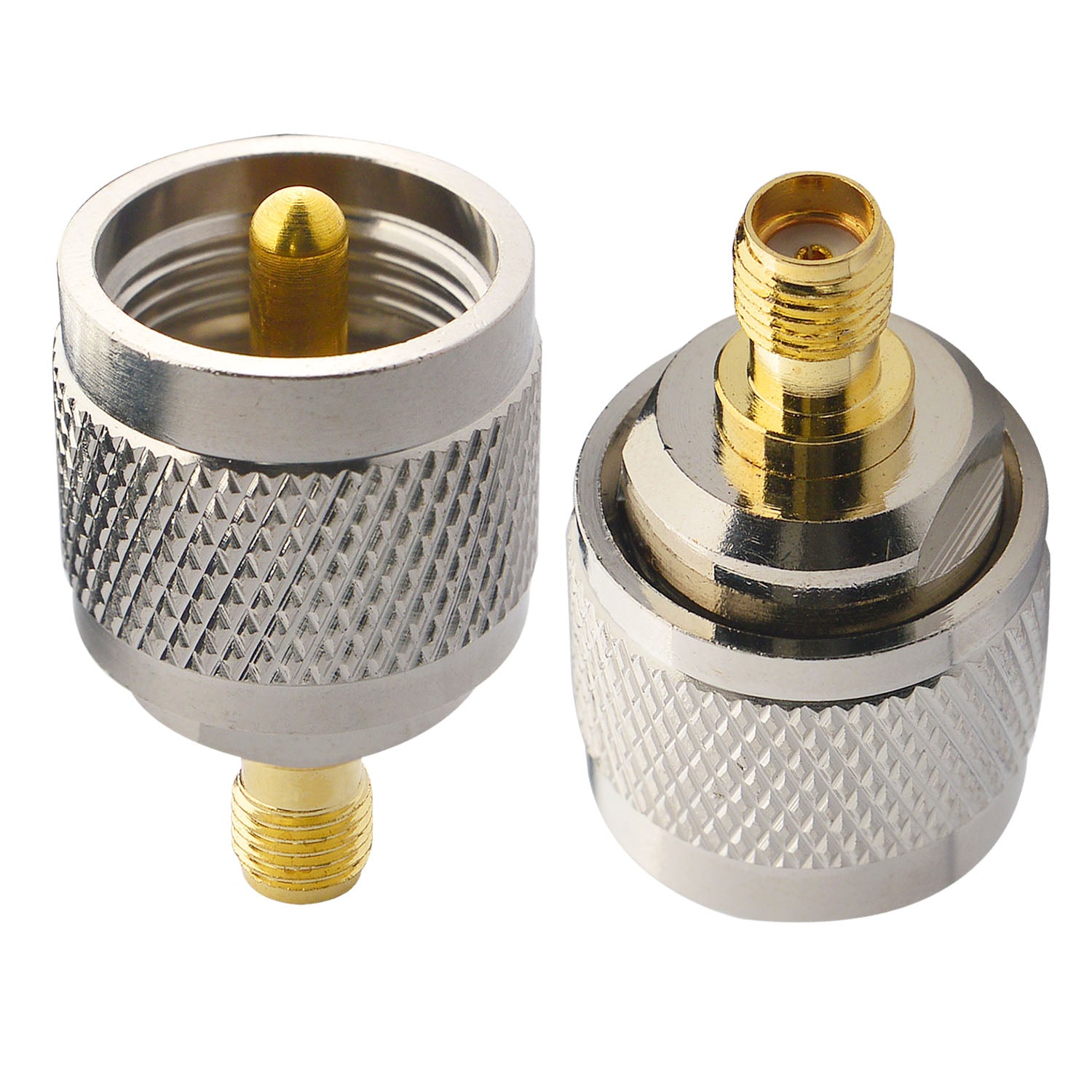

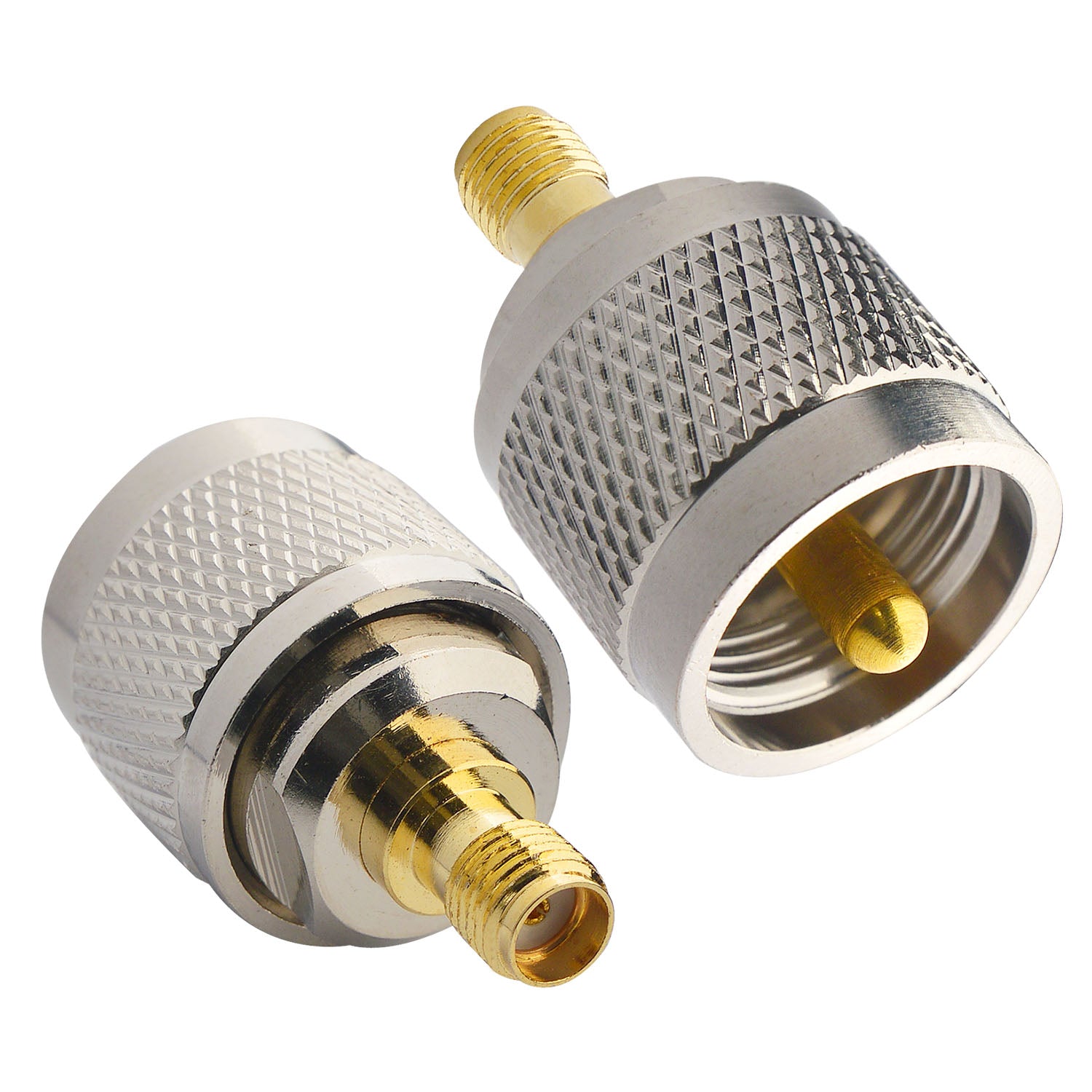

  • The Bridge for Handhelds & Meters: Converts a standard UHF Female (SO-239) port into an SMA Female port. Primarily used to connect SMA Male handheld radios (like Baofeng UV-5R) directly to SWR Meters, Radio antenna inputs for testing and operation.
  • SMA Jumper Compatible: Ideal for connecting thin coaxial cables (RG316/RG174) with SMA Male connectors to UHF SO-239 jacks. Perfect for SDR dongles hotspots to external base station antennas.

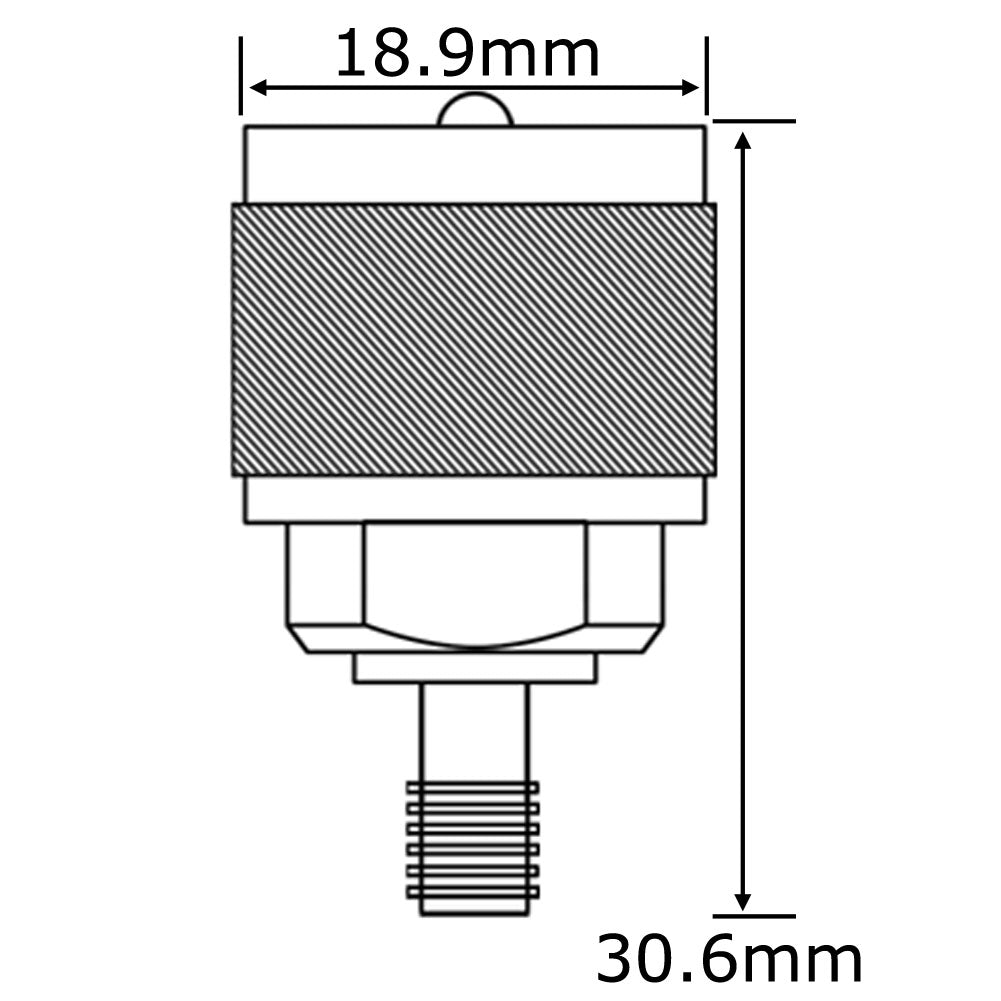

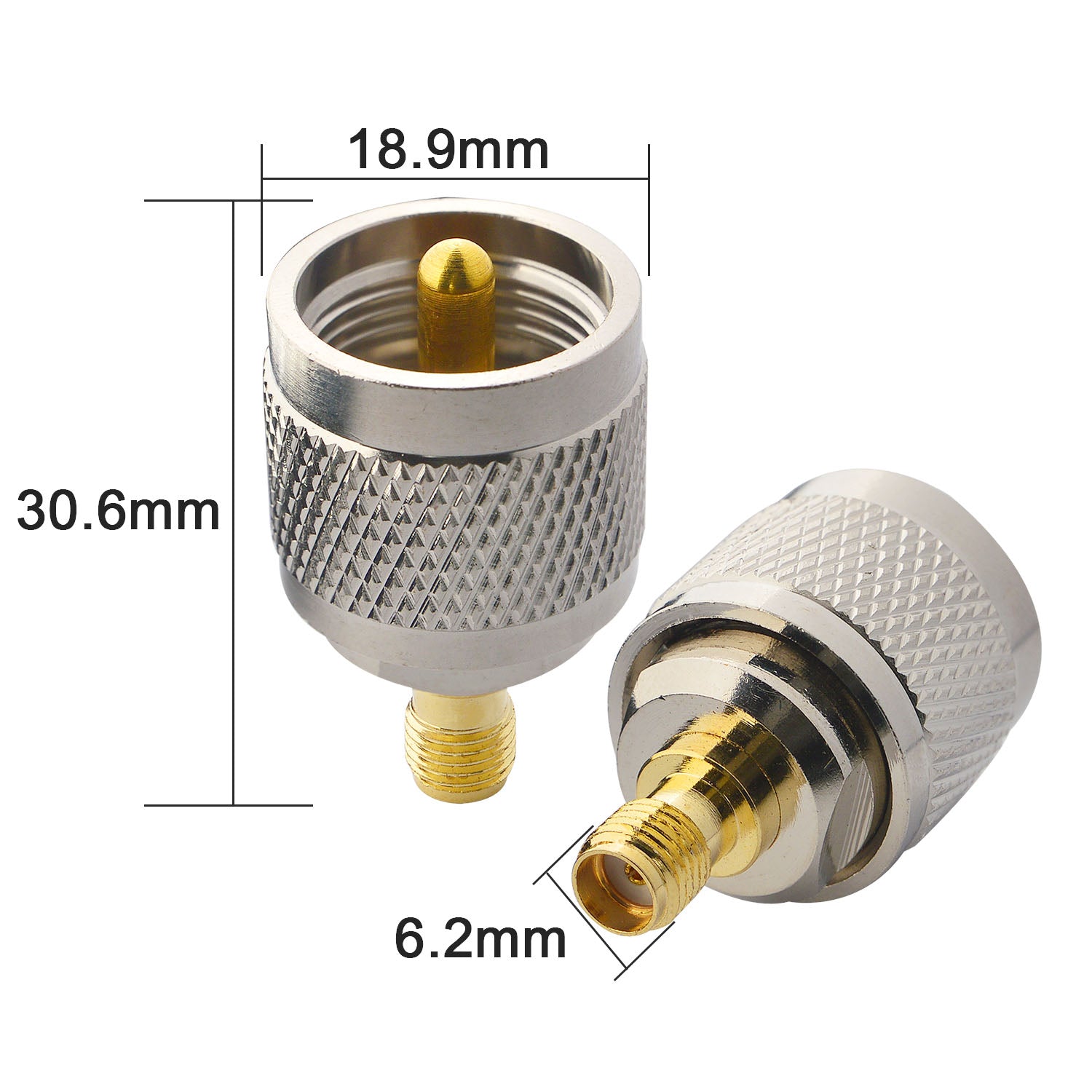

  • Check Your Gender:Side A: UHF Male (PL-259) - plugs into the radio/meter.Side B: SMA Female (Hole in center, External Threads) - connects to SMA Male devices.
  • Transmission: Constructed with a Nickel-Plated Brass body and Gold-Plated Contacts for reliable signal transmission. High-temperature PTFE insulation prevents melting during soldering or high-power transmission.
  • Package Specs: Includes 2x UHF Male to SMA Female Adapters. Impedance: 50 Ohm. Perfect for Ham Radio, CB Radio, Telecom, Low Loss RF Pigtails.
