RF CONNECTIVITY COMPONENT

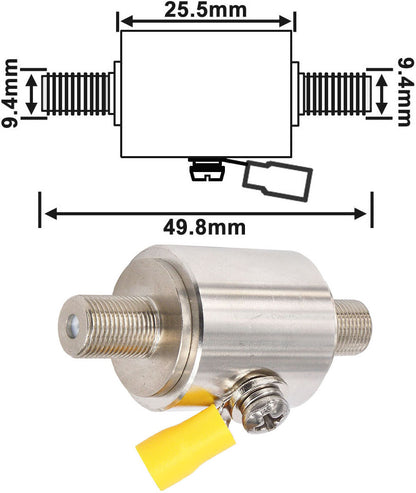

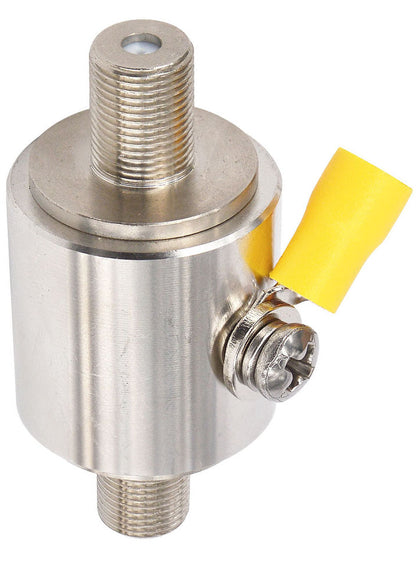

onelinkmore Lightning Arrestor F Type Coax Female to Female DC-3GHz 75 Ohm Lightning Surge Protector with 90V Gas Tube Surge Arrester

onelinkmore Lightning Arrestor F Type Coax Female to Female DC-3GHz 75 Ohm Lightning Surge Protector with 90V Gas Tube Surge Arrester

SKU:OL-4402

Regular price $15.89 USD
Regular price $15.89 USD Sale price $15.89 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Customized Services

Need a different connector, cable length, antenna configuration or labeling? Send us your specifications for review.

Shipping Methods

Standard and express options are shown at checkout. B2B courier-account shipping is available.

Quality & Support

Connector, cable, frequency and application details can be reviewed before custom production.

View full details

Product Details

  • With F-female Connectors 75 ohm in two side, one side with Bulkhead and O-ring .Protects signal boosters from lightning strikes, Requires additional ground cable
  • Easy install designed and manufactured the lightning surge protector with high quality nickel plated brass to provide superior performance and longevity (Low Signal Loss)
  • Standard 90 V DC breakdown voltage gas discharge tube (GDT) element which can be easily replaced to provide multistrike capacity
  • 75 Ohm F Type Female to F-female for RG6 coax cables connection compatible with 75 Ohm Cell Phone Signal Boosters, CATV, Satellite Cable TV antennas
  • TV Surge protector should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection
