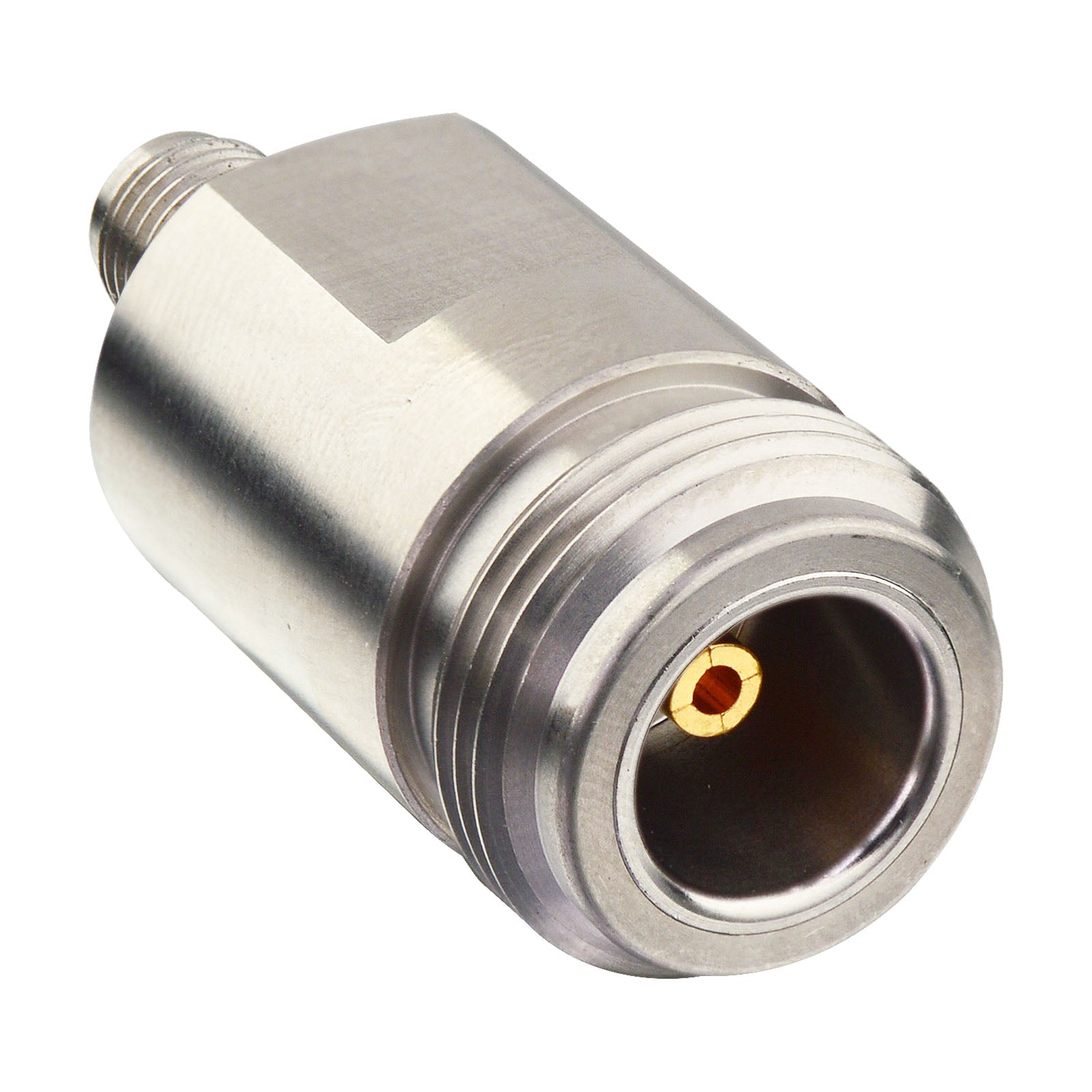

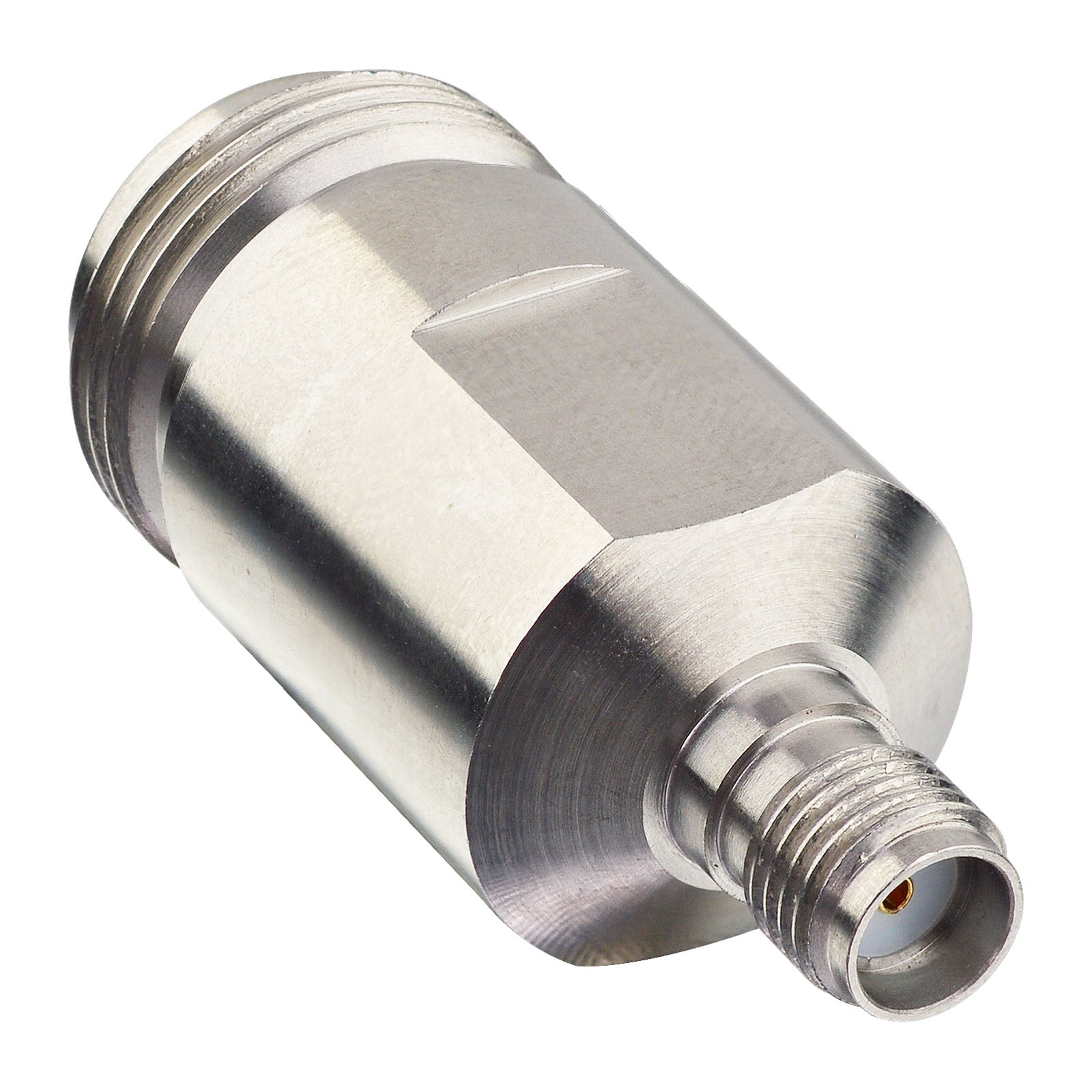

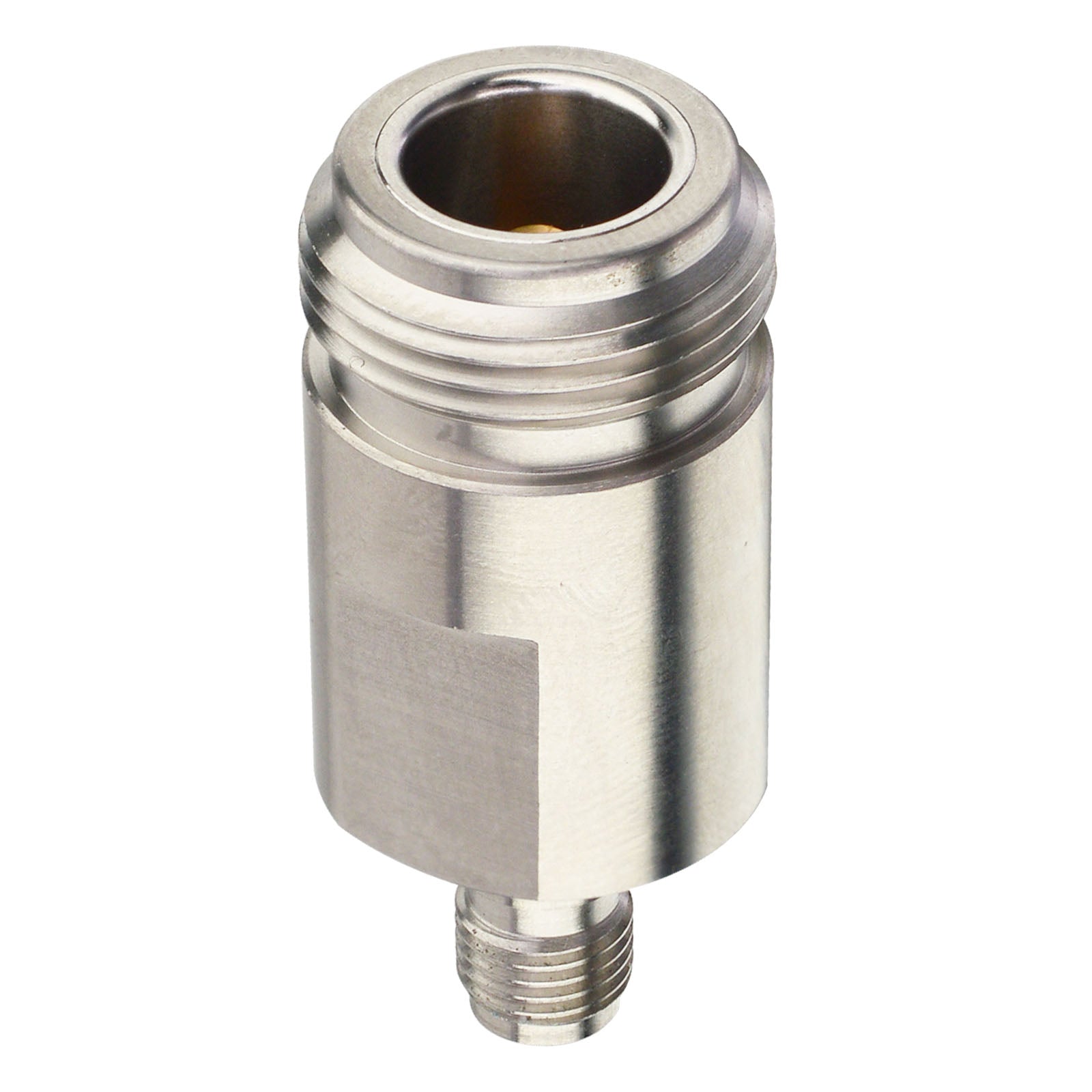

onelinkmore Precision SMA to N Type Connector SMA Female to N Female Straight Stainless Steel Adapter DC-18GHz 50 Ohm Coaxial Connector
Unit price/ per

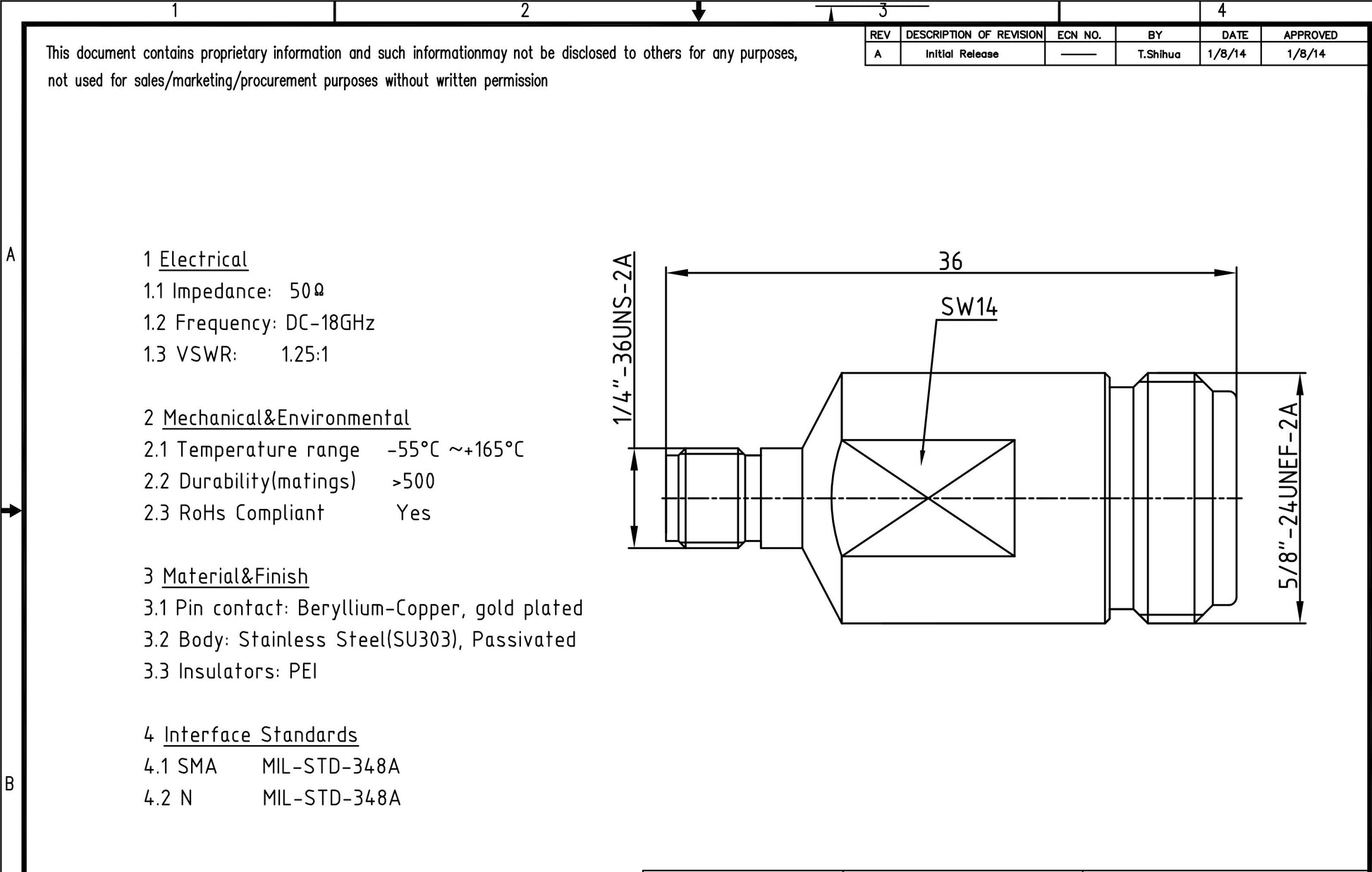

Adapter: SMA Female to N Female ; Impedance: 50 Ohm ; Frequency: DC-18 GHz ; V.S.W.R.: 1.20:1
Body Material: Stainless Steel(SU303), Passivated ; Temperature Range: -55℃ ~ +165℃ ; RoHs Compliant: Yes
Stainless Steel Material: With goog oxidation resistance, incorruptiblenesses, Strong connection, strong pressure resistance, good sealing and repeatability, convenient installation and maintenance, safe and reliable operation.
The working frequency of RF connectors on the market only supports 3GHz, but ours actually supports 18GHz.
Packet Content: 1pcs SMA Female to N Female Stainless Steel Connector
