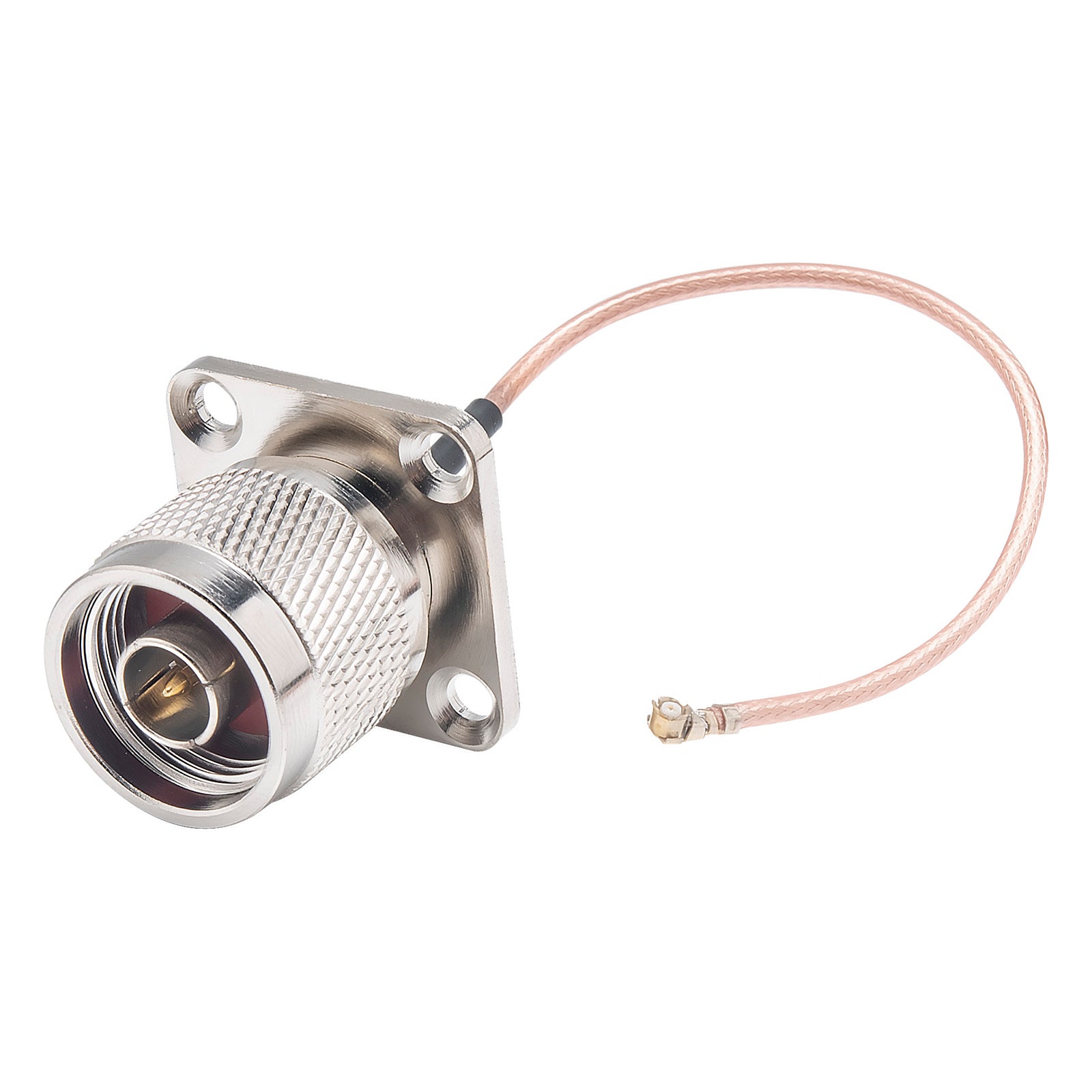

N Type Male Coaxial Cables U.FL to N Male RG178 N Type 4 Hole Flange Panel Coax Cable for T Mobile Router Mimo External Antenna Network Cards Wi-Fi WLAN Repeater Custom Meshtastic Nodes Pack of 2

N Type Male Coaxial Cables U.FL to N Male RG178 N Type 4 Hole Flange Panel Coax Cable for T Mobile Router Mimo External Antenna Network Cards Wi-Fi WLAN Repeater Custom Meshtastic Nodes Pack of 2

$11.99 USD
$11.99 USD
Sale Sold out
Shipping calculated at checkout.

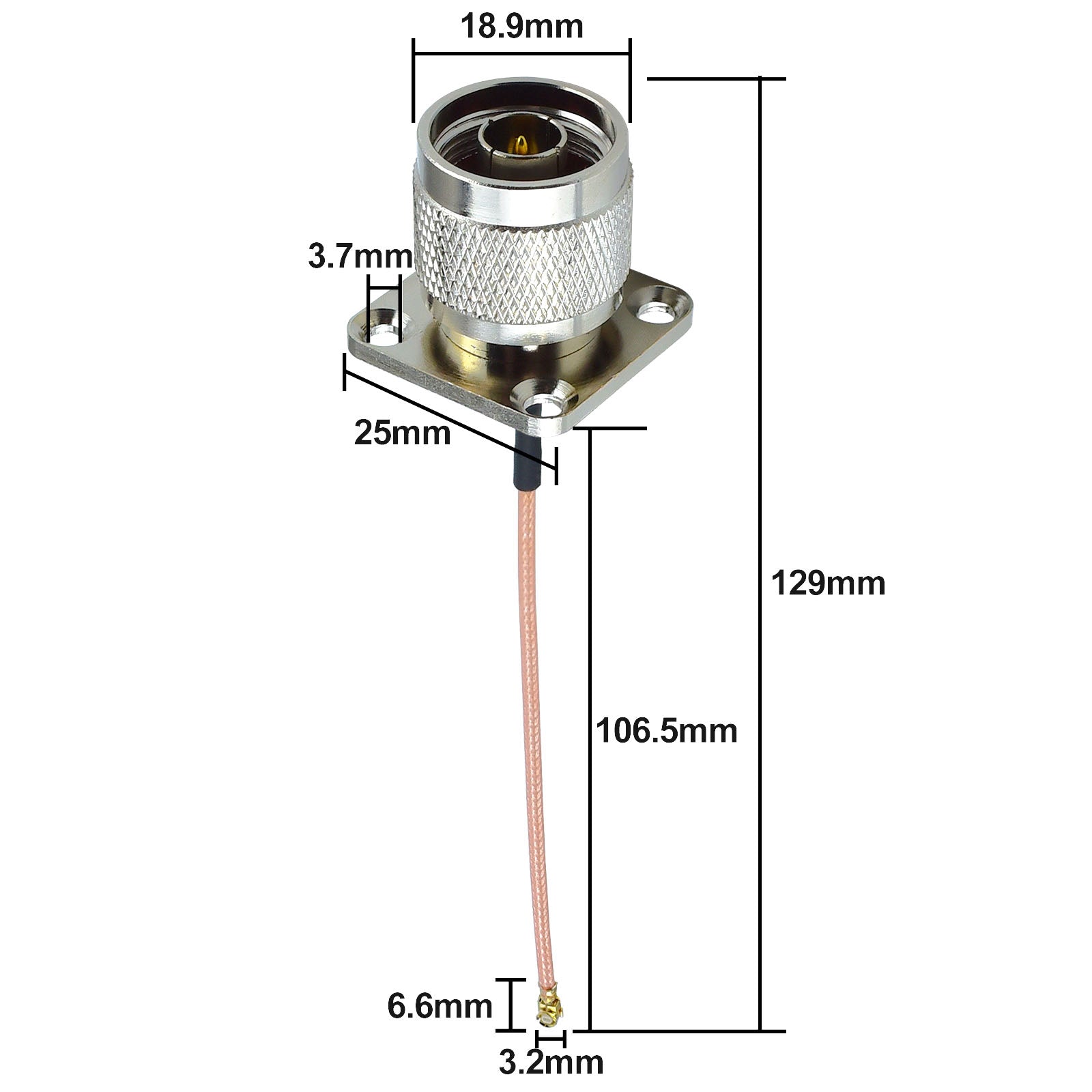

  • Connector 1：UFL Female; Connector 2：N Type male 4 Hole Flange ; Cable Type:RG178 Coaxial Cable; Cable Length: 10cm ; Impedance: 50 Ohm ; Metall: Copper;Gold-plated bronze center conductor, PTFE dielectric, and an orange PE jacket; VSWR rated below 1.30 for use at frequencies of up to 6 GHz.U.FL is also referred to as MHF1, AMC, or UMCC,making it compatible with 915MHz LoRaWAN and 2.4GHz/5GHz WiFi applications.

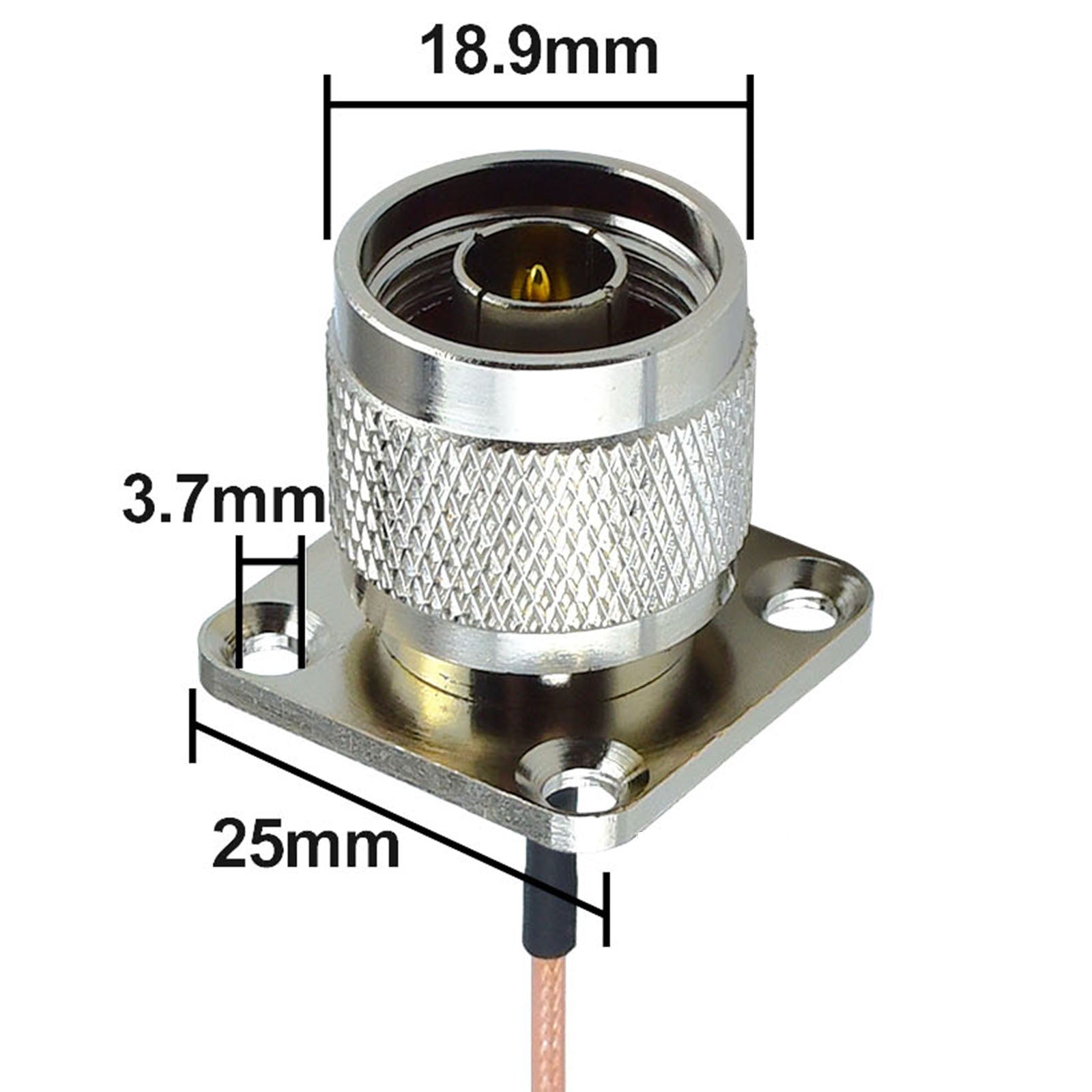

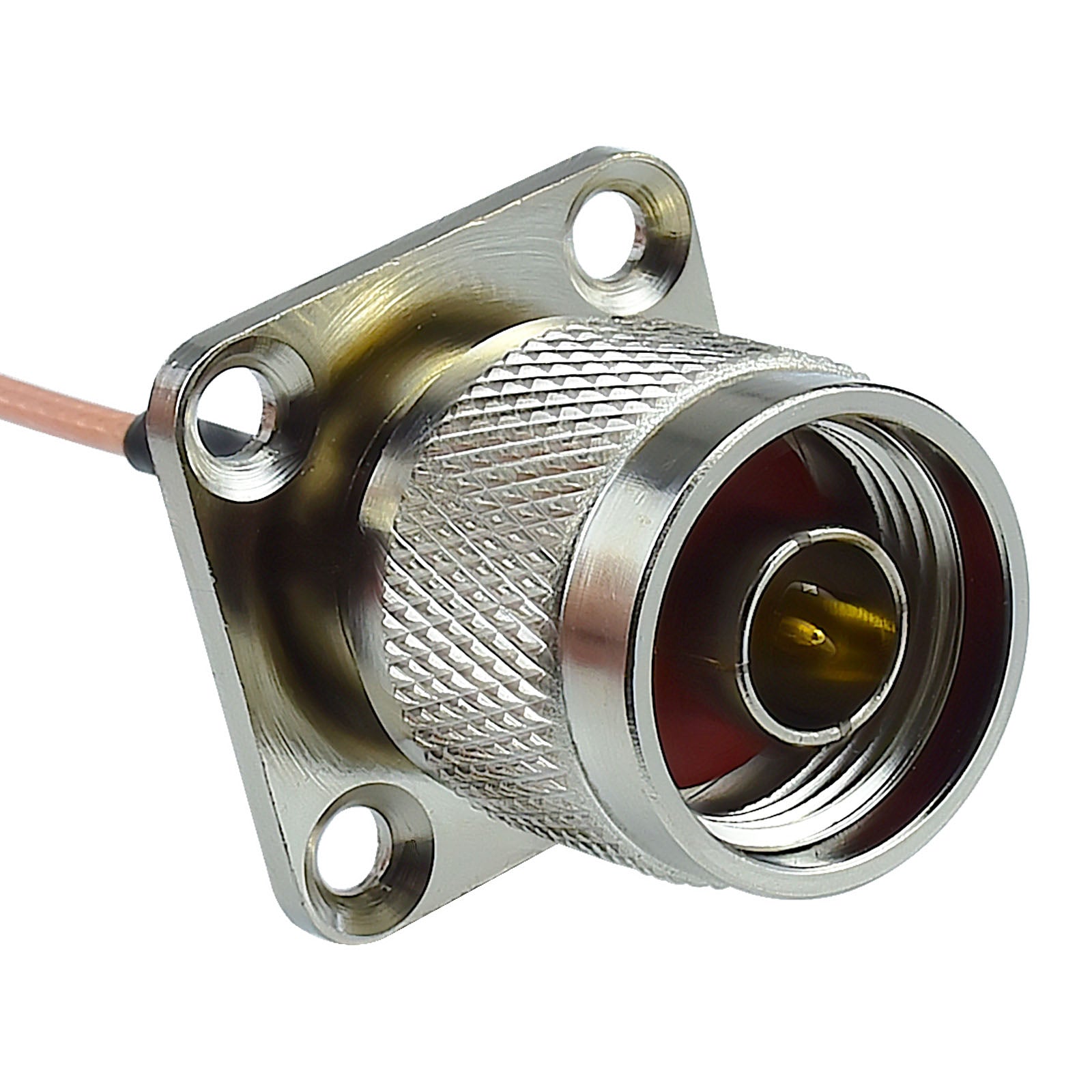

  • Secure 4-Hole Flange Mount: Engineered for high-vibration environments. The 4-hole square flange allows you to mount this N Male plug securely onto custom enclosures or panels. It provides a stable, non-rotating connection, ideal for specialized Meshtastic node builds or industrial control boxes that interface with N-Female equipment.
  • U.FL to N Type male RG178 coaxial cable Compatible with: Wireless/WiFi Network Router, WiFi AP Hotspot Modem, WiFi USB Adapter, Desktop PC Wireless Mini PCI, WLAN,Express PCIE Network Card Adapter
  • RG178 coaxial cable: This is a thin and flexible cable with low loss and not easy to break. When connecting a U.FL connector to a mini PCI card or a jack on a board, a narrow space usually requires this kind of Pigtail; U.FL to N male adapters use high-quality RG178 semi-flexible cable that is durable and strong, with minimal insertion loss. Unlike most other adapters, our pigtail adapters won't fall apart during installation.

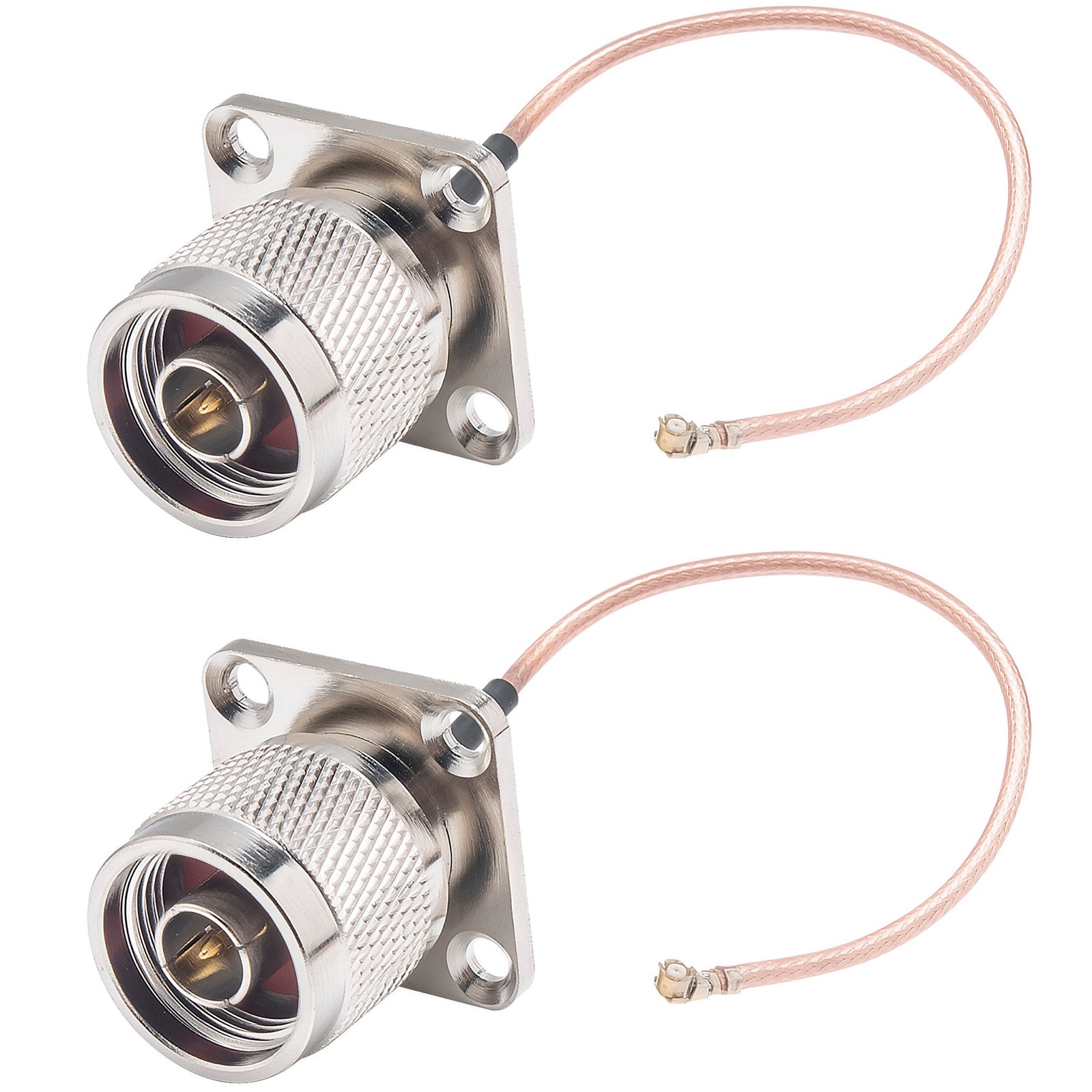

  • Package: 2 x N-male to U.FL Female connector 4 Hole Flange10cm RG178 Coaxial Pigtail Cable
