onelinkmore 4.3/10 Mini DIN Connector Male to 4.3/10 Mini DIN Male Adapter Teflon 0-6GHz Connector 4.3-10 Mini DIN Male Adapter
Unit price/ per

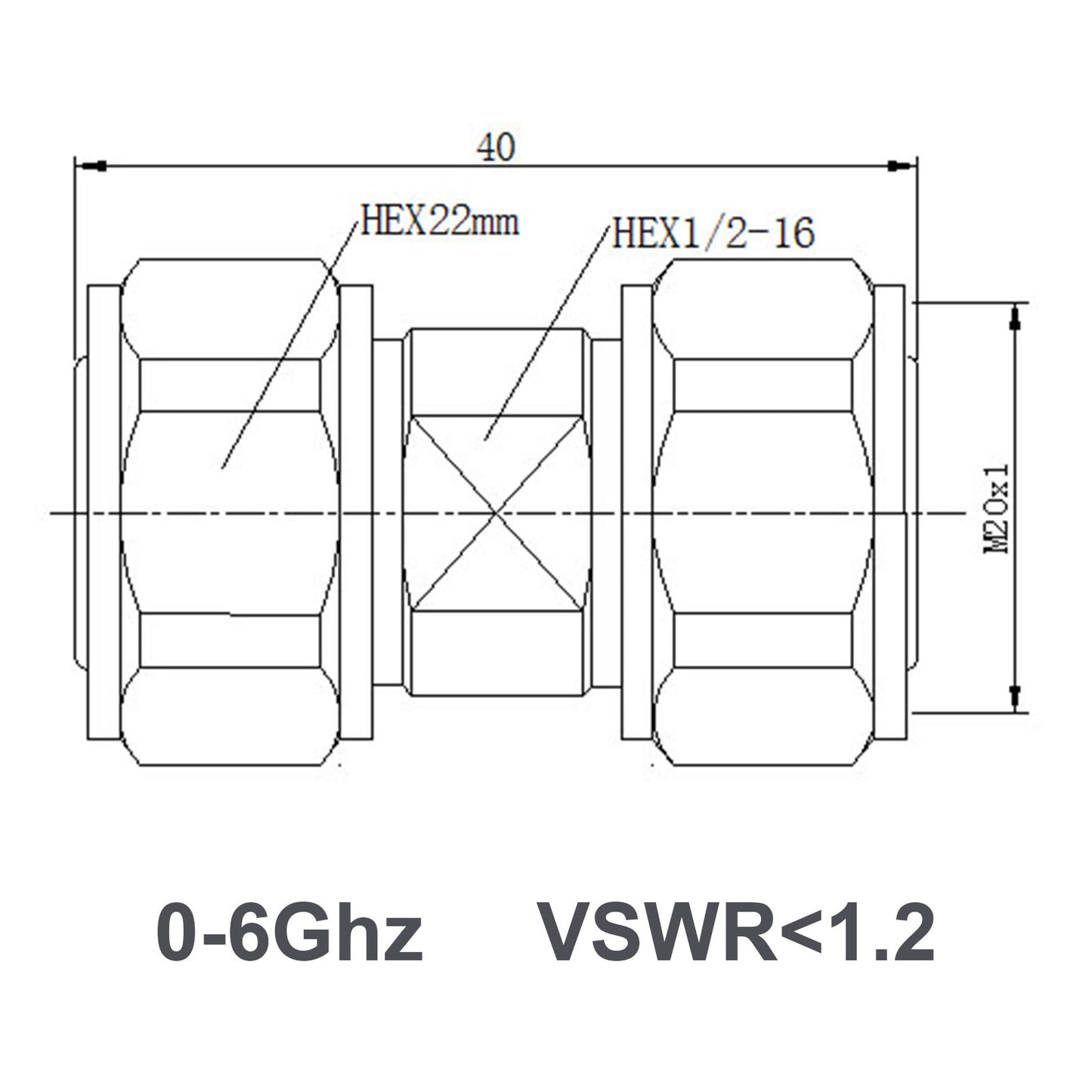

This is coaxial connector 4.3-10 Mini DIN male adapter to 4.3-10 Mini DIN male adapter,both sides are 4.3/10 Mini DIN male connectors. The 4.3-10 Mini DIN connector is commonly used in wireless communication systems, power monitoring, medical equipment, automotive industry, including base stations, antennas, and other infrastructure components. It is also used in other high-frequency applications, such as test and measurement equipment and medical devices.
Frequency Range :DC-6GHz VSWR ≤1.10 Insertion loss≤0.1dB PIM3 ≤-160dBc; Impedance :50 Ohm, Body Brass Tri-Alloy plated,PTFE(Teflon) Insulator.
The 4.3-10 Mini DIN connector, also known as the 4.3-10 connector, is a type of RF connector that is designed for high-performance applications in wireless communication systems. It is a relatively new type of connector that combines the compact size of a DIN connector with the high performance of a 7/16 DIN connector.
The 4.3-10 Mini DIN connector has a smaller form factor compared to traditional 7/16 DIN connectors, which makes it ideal for use in space-constrained applications. It features a low-PIM (passive intermodulation) design, which reduces the risk of intermodulation interference in high-power applications. The connector is also designed for easy installation, with a push-pull coupling mechanism that allows for quick and easy mating and unmating.
Package Included: 1 x adapter 4.3/10 Mini DIN male to 4.3/10 Mini DIN male
