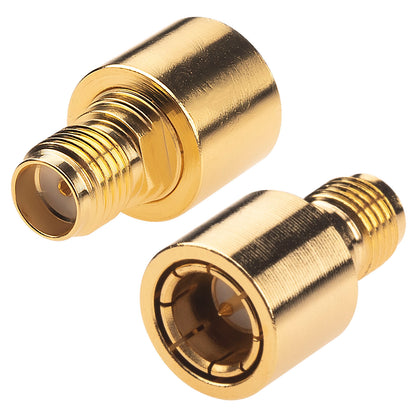

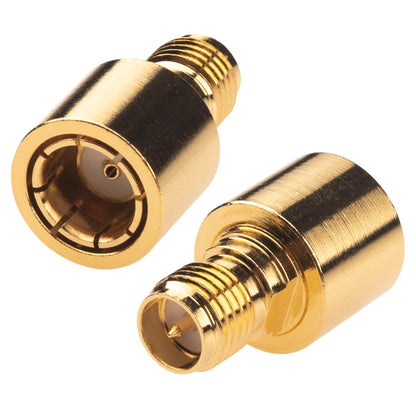

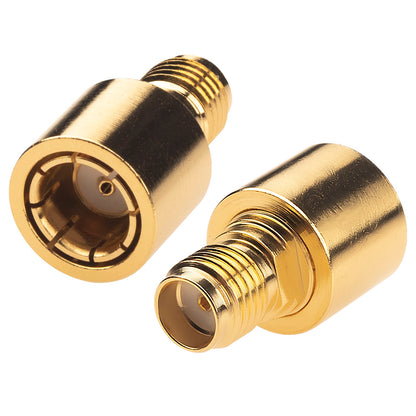

onelinkmore SMA Quick Push-On Adapter DC-12GHz Precision RF Test Connector & Port Saver Gold Plated Rapid Connect for Lab Testing, VNA, Antenna Production Pack of 2
onelinkmore SMA Quick Push-On Adapter DC-12GHz Precision RF Test Connector & Port Saver Gold Plated Rapid Connect for Lab Testing, VNA, Antenna Production Pack of 2
Couldn't load pickup availability

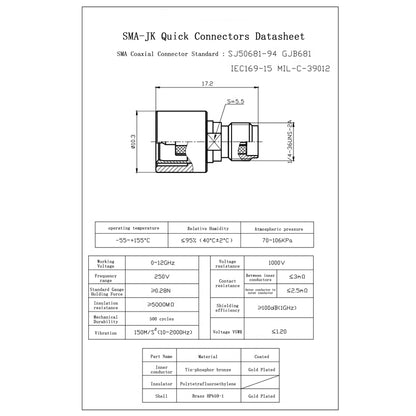

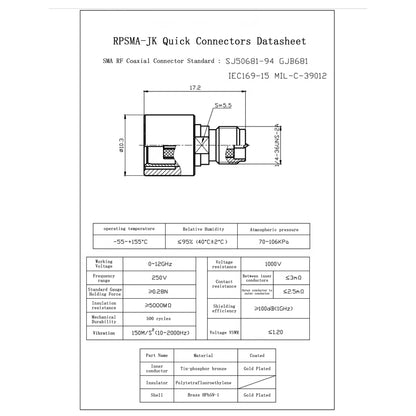

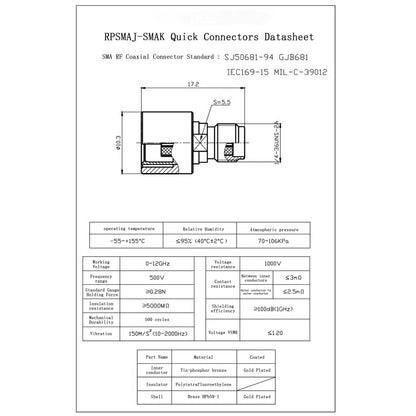

--- QUICK SPEC REFERENCE --- Product: SMA Quick Push-On Adapter, Port Saver, DC-12GHz Connector A: SMA Male or RP SMA Male(push-on, no threading required) Connector B: SMA Female or RP SMA female Frequency Range: DC to 12 GHz Contact Material: Gold Plated Body Material: Brass Connection Method: Push-on / Pull-off (under 1 second) Impedance: 50 Ohm Application: VNA port saver, lab testing, production line RF testing Quantity: 2 adapters per pack Price: $9.88 In Stock: Yes ---
This SMA push-on adapter connects and disconnects without threading — a single push seats the connector, and a straight pull releases it. It is designed as a port saver for VNA (Vector Network Analyzer) SMA female ports, which are rated for a limited number of threaded mating cycles (typically 500–1000) before wear degrades measurement accuracy. By placing this push-on adapter on the VNA port, all repeated connections during testing or production are made to the adapter's SMA male end rather than the VNA's precision SMA female port directly, preserving the port and extending instrument service life significantly.
The DC to 12 GHz frequency rating makes this adapter suitable for use across the full range of sub-12 GHz RF applications including 5G sub-6 GHz, WiFi 6/6E, and X-band radar testing. Gold-plated contacts maintain low insertion loss and contact resistance across the operating frequency range. The push-on mechanism allows connection speeds under one second, making this adapter particularly useful in production line testing environments where DUT (device under test) throughput is time-sensitive and threaded SMA connections create a bottleneck.
This is a push-on SMA adapter, not a standard threaded SMA. It will not thread onto a standard SMA male connector — it is designed to push directly onto an SMA female port. The mating surface uses spring-loaded contacts rather than threads. For applications requiring a secure, vibration-resistant connection over extended periods, a standard threaded SMA adapter is more appropriate. This adapter is optimized for bench use and production testing where connections are made and broken frequently.
Frequently Asked Questions
A VNA (Vector Network Analyzer) port is a precision SMA female connector calibrated to exacting dimensional tolerances. Each mating cycle causes microscopic wear on the center conductor and outer connector body. Most VNA SMA ports are rated for 500–1000 mating cycles before wear begins to affect measurement repeatability. A port saver is an inexpensive adapter placed on the VNA port so that all test connections are made to the adapter rather than the port directly. When the adapter shows wear, it is replaced — protecting the far more expensive VNA port.
The push-on mechanism uses a spring-loaded outer conductor that snaps onto the SMA female port's outer rim under spring tension. This provides enough retention force for bench testing and short cable connections. The connection is not as mechanically secure as a threaded SMA under vibration, but is fully adequate for stationary bench and production test applications where cables are not subjected to mechanical stress during measurement.
Yes, the push-on male end is dimensionally compatible with standard SMA female ports. At 12 GHz, SMA connectors are approaching their useful frequency limit — standard SMA is specified to 18 GHz but performance degrades above 12 GHz in practice. For measurements above 12 GHz, 3.5mm or 2.92mm precision connectors are the appropriate choice. Below 12 GHz, this adapter's gold-plated contacts and brass body maintain low insertion loss suitable for lab-grade measurements.
Yes, this is one of the primary use cases. In production testing where each unit requires an SMA connection for RF parameter measurement (output power, frequency, VSWR), the push-on mechanism dramatically reduces test time compared to threading. A trained operator can make a push-on connection in under one second versus 3–5 seconds for a threaded SMA. For a production line testing 500 units per shift, this saves significant test cycle time and reduces operator fatigue from repetitive threading motions.
Any adapter inserted between the VNA port and the DUT introduces a small amount of insertion loss and a phase shift corresponding to the adapter's electrical length. For most practical VNA measurements, this is accounted for by performing a calibration with the adapter in place — the standard SOLT (Short-Open-Load-Thru) calibration procedure moves the reference plane to the end of the adapter, removing its effect from measurements. With proper calibration, measurement accuracy is not meaningfully affected.
Many VNAs have two ports (Port 1 and Port 2), both of which benefit from port saver protection during S-parameter measurements. The 2-pack allows both ports to be protected simultaneously. A spare is also useful given that push-on adapters experience more rapid wear than threaded adapters due to the sliding contact mechanism — having a replacement immediately available prevents downtime when the first adapter shows wear.
