onelinkmore SMA to N BNC TNC F Type Adapter Kit, 20 Type Adapters, Male to Female Coaxial Connectors
onelinkmore SMA to N BNC TNC F Type Adapter Kit, 20 Type Adapters, Male to Female Coaxial Connectors
Couldn't load pickup availability
--- QUICK SPEC REFERENCE --- Product: SMA to N / BNC / TNC / F-Type Master Adapter Kit, 20 Types SKU: OL-3262 Total Adapters: 20 pieces Series Included: N to SMA (6 types including panel mount) BNC to SMA (4 types) N to RP-SMA (4 types) Other: N Male to BNC Male, N Male to BNC Female, N Female to N Female, N Male to F Female, BNC Male to F Female, plus additional Impedance: 50 Ohm Price: $25.98 In Stock: Yes ---
This 20-piece master adapter set provides comprehensive inter-series conversion between SMA, RP-SMA, N-type, BNC, TNC, and F-type connectors — the six connector standards most commonly encountered in RF engineering, amateur radio, SDR, cellular infrastructure, and test and measurement work. Unlike kits focused on a single connector standard, this set covers the full matrix of N-to-SMA, N-to-RP-SMA, BNC-to-SMA, and additional cross-combinations, making it the single purchase that addresses virtually any connector mismatch scenario encountered in professional and advanced amateur RF work.

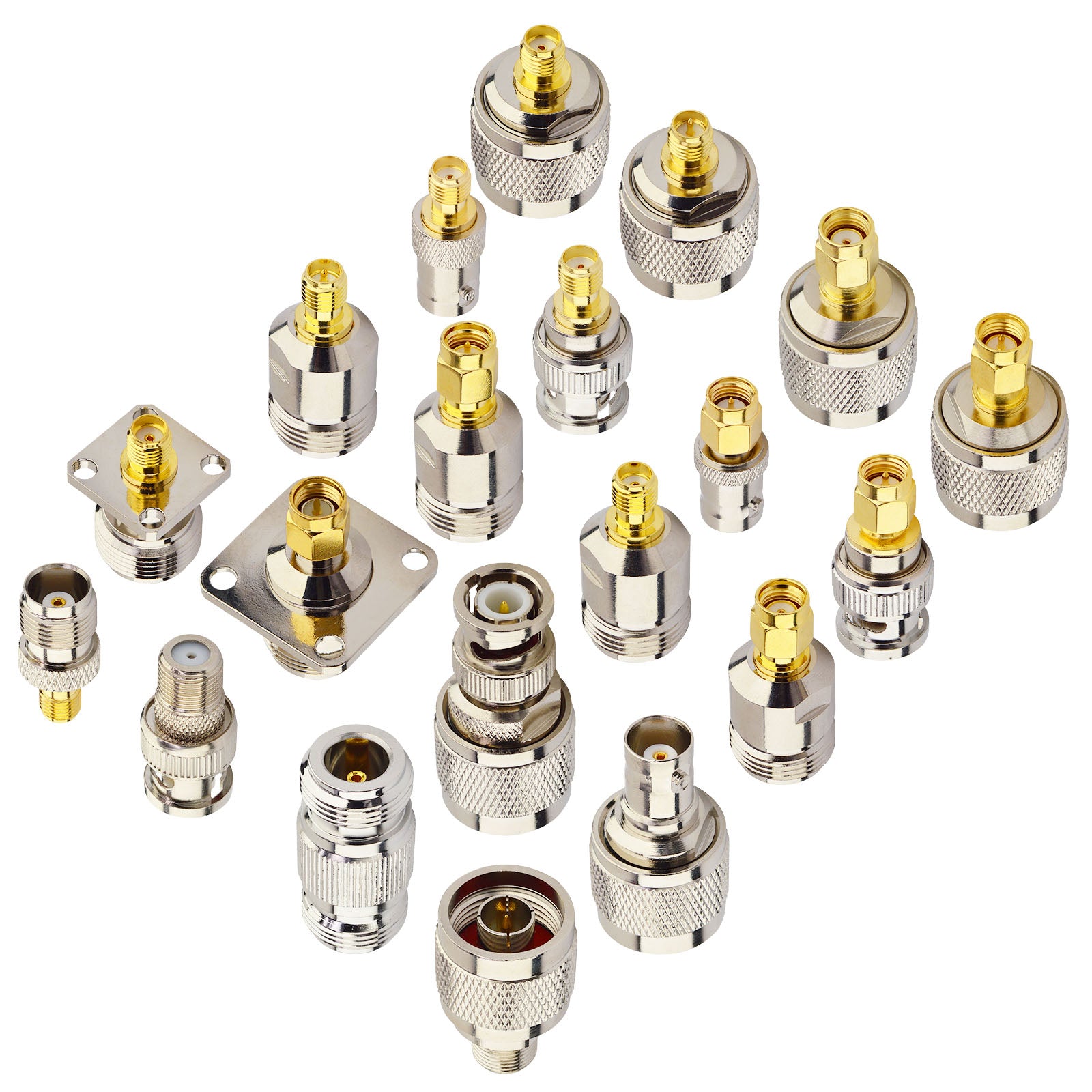

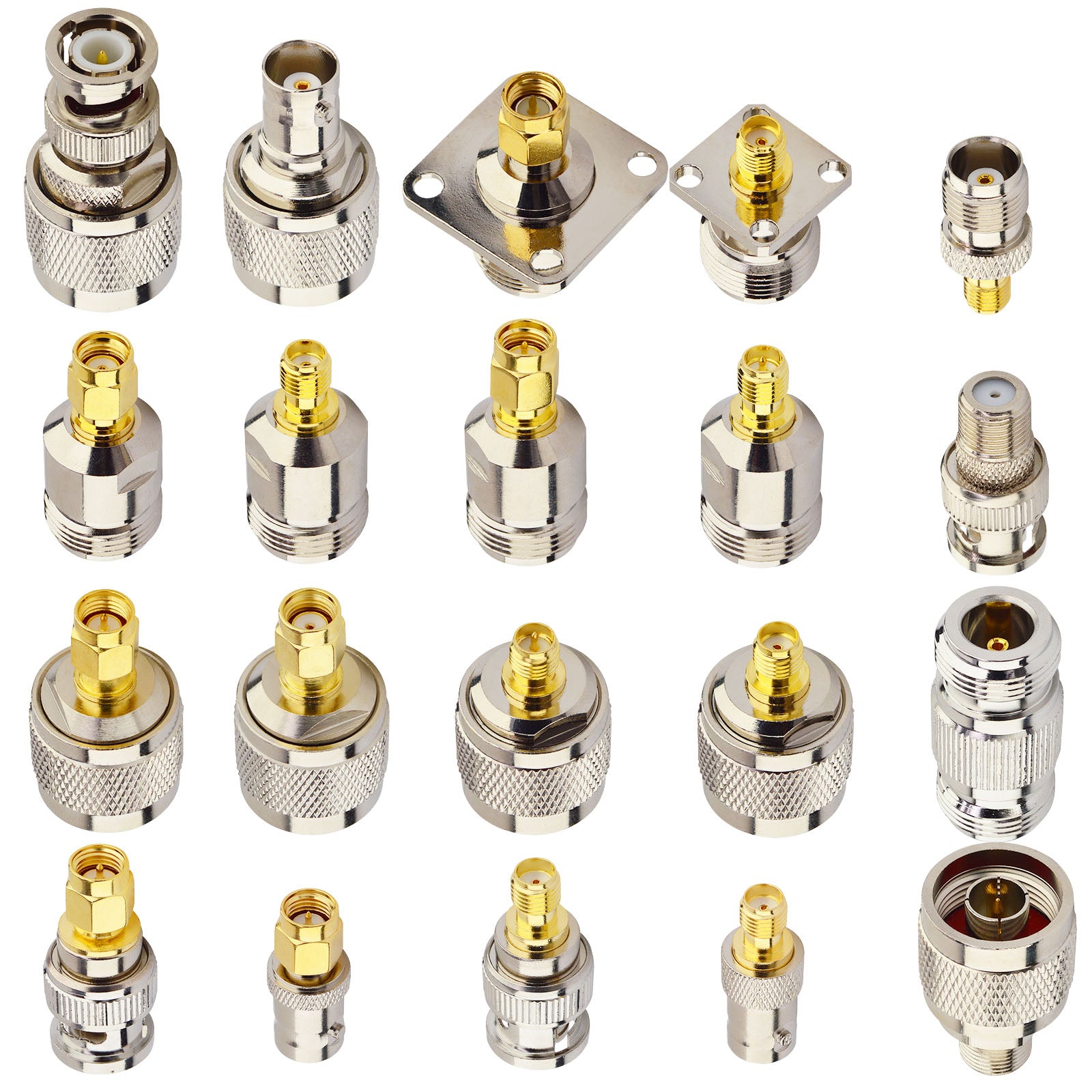

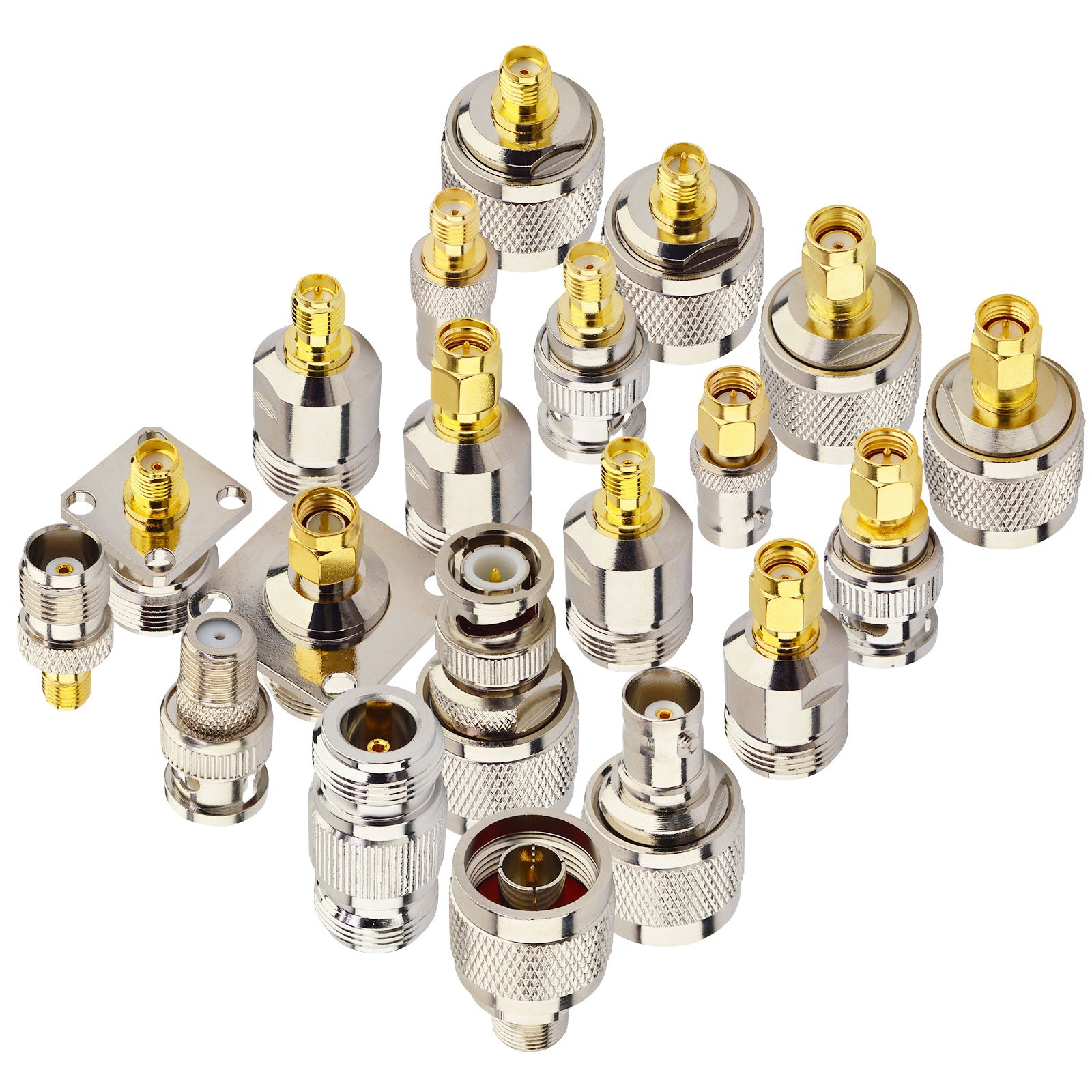

The 20 adapter types span five series: N-to-SMA (6 pieces including panel mount variants), BNC-to-SMA (4 pieces), N-to-RP-SMA (4 pieces), and additional cross-series combinations including N-to-BNC, N-to-F, and BNC-to-F. All adapters use 50 ohm impedance and quality brass construction with appropriate plating for corrosion resistance and long service life. The inclusion of panel mount variants (N female to SMA female with panel mount flange) extends the kit's utility beyond bench use to equipment build and installation applications.
The F-type adapters in this kit introduce a nominal 75-to-50 ohm impedance mismatch, since F-type is a 75 ohm standard while all other connectors in this kit are 50 ohm. For receive-only SDR applications connecting to F-type TV antenna infrastructure, this mismatch is acceptable — it introduces approximately 0.18 dB of loss at a single adapter connection. For transmit applications or precision measurement across the impedance boundary, dedicated impedance-matching adapters are more appropriate.
Frequently Asked Questions

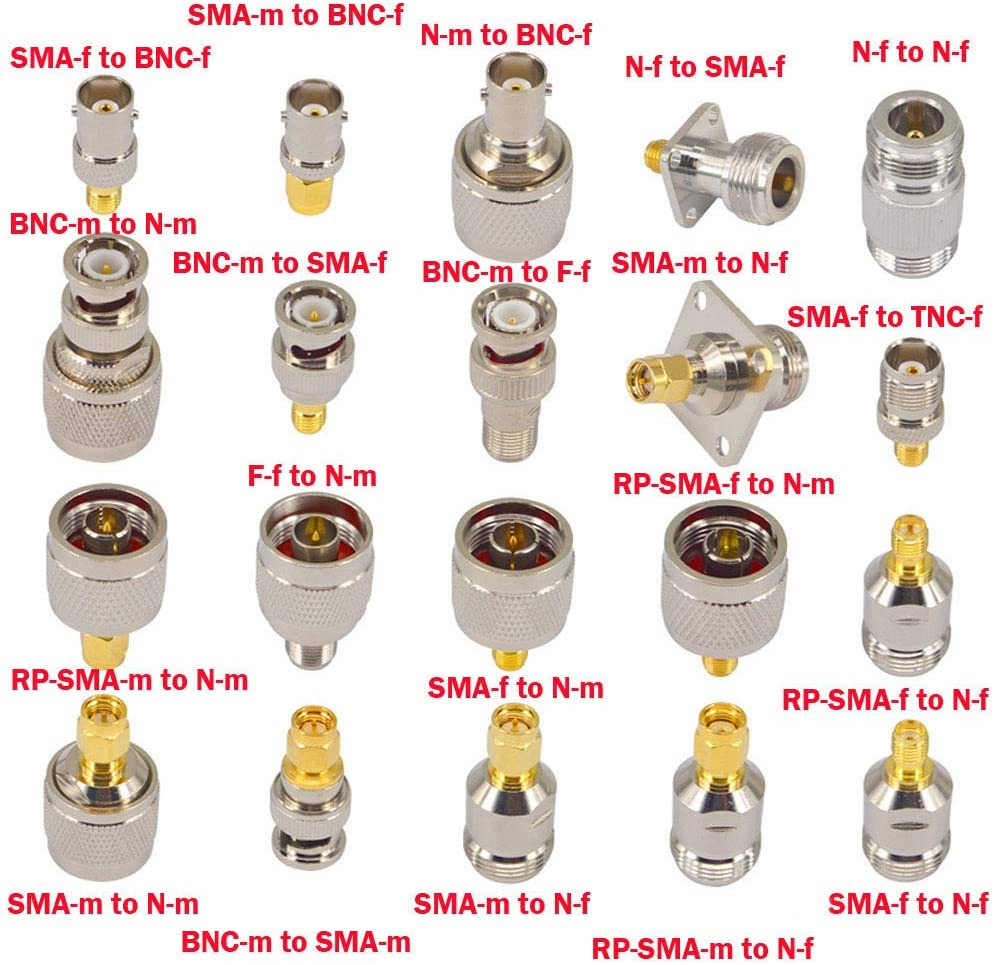

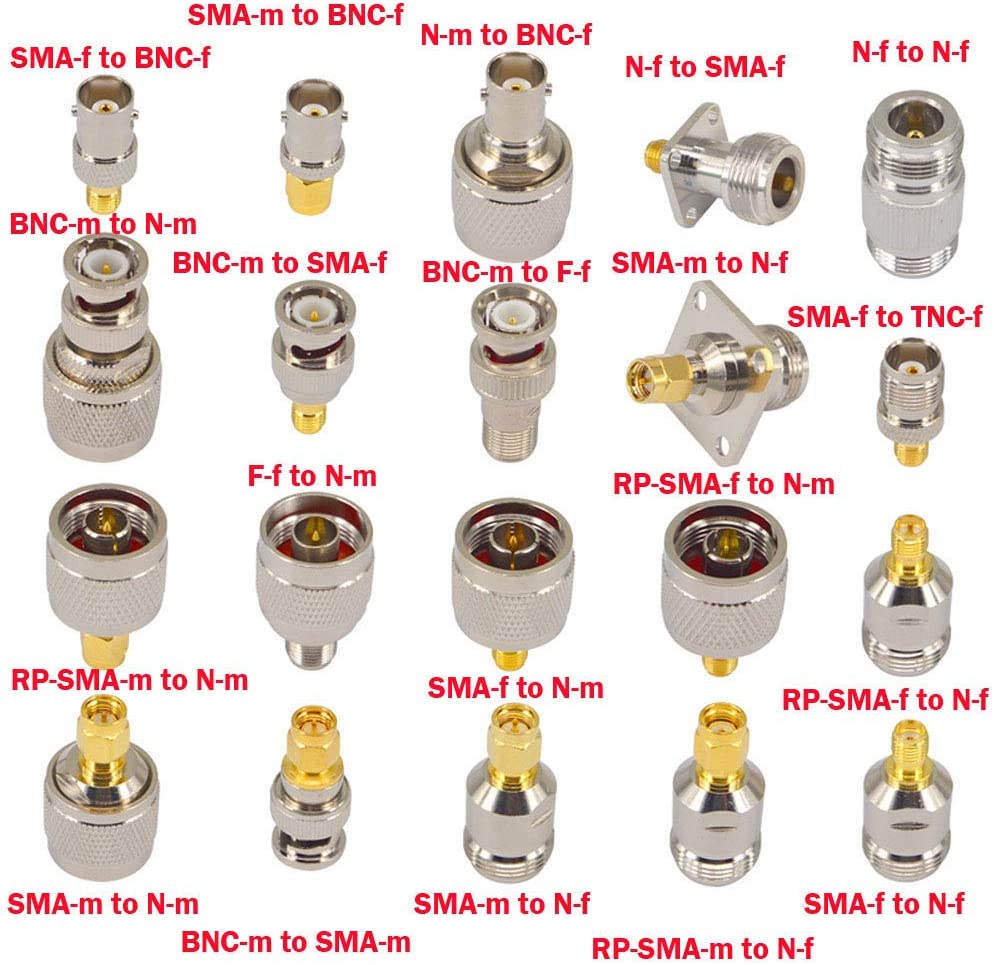

N-to-SMA series (6): N female to SMA female, N female to SMA male, N female to SMA female panel mount, N male to SMA male, N female to SMA female (second variant), N male to SMA male panel mount. BNC-to-SMA series (4): BNC male to SMA male, BNC male to SMA female, BNC female to SMA male, BNC female to SMA female. N-to-RP-SMA series (4): N female to RP-SMA male, N female to RP-SMA female, N male to RP-SMA male, N male to RP-SMA female. Other series (6): N male to BNC male, N male to BNC female, N female to N female, N male to F female, BNC male to F female, and one additional type. Check product images for the exact 20-piece configuration list.
A panel mount adapter has a flange or hex nut designed to be installed through a hole in an equipment panel or enclosure wall, creating a fixed connector point accessible from outside the enclosure. For example, an N female to SMA female panel mount adapter installed in an enclosure wall allows an external N-type antenna cable to connect to internal SMA-port equipment without opening the enclosure. Panel mount adapters are used in equipment builds, go-box fabrication, and any installation where a clean exterior connection point is required.
The kit description references TNC in the product title, but the primary series covered are N-to-SMA, BNC-to-SMA, N-to-RP-SMA, and N-to-BNC/F combinations. TNC-specific adapters may be included in the "other" category depending on the exact kit configuration. Check the product images for the specific 20-piece list to confirm TNC inclusion before ordering if TNC adapters are specifically required.
Yes. VNAs (Vector Network Analyzers) typically have N-type or SMA ports. This kit provides the adapters needed to connect VNA ports to antennas and cables terminated in BNC, TNC, F-type, RP-SMA, or N-type connectors. For precision VNA measurements, perform calibration with the adapter in place to move the reference plane to the adapter's output, accounting for the adapter's insertion loss and electrical length in the measurement.
RP-SMA is the standard for consumer WiFi routers, Helium miners, and wireless access points. RF engineers frequently need to connect precision test equipment (N-type or standard SMA ports) to WiFi devices (RP-SMA ports) for antenna characterization, regulatory compliance testing, and signal analysis. The N-to-RP-SMA adapters in this kit enable these connections without requiring dedicated RP-SMA test accessories.
Different 20-piece kits focus on different base connector standards. This kit centers on N-type and SMA as the primary conversion standards, with emphasis on N-to-SMA, N-to-RP-SMA, and BNC-to-SMA conversions plus panel mount variants. Other kits focus on UHF (PL-259/SO-239) as the base standard, or on SMA-to-all-others. Choose based on which connector standards dominate your equipment — if you primarily work with N-type and SMA equipment, this kit is the most relevant.
