Product Details

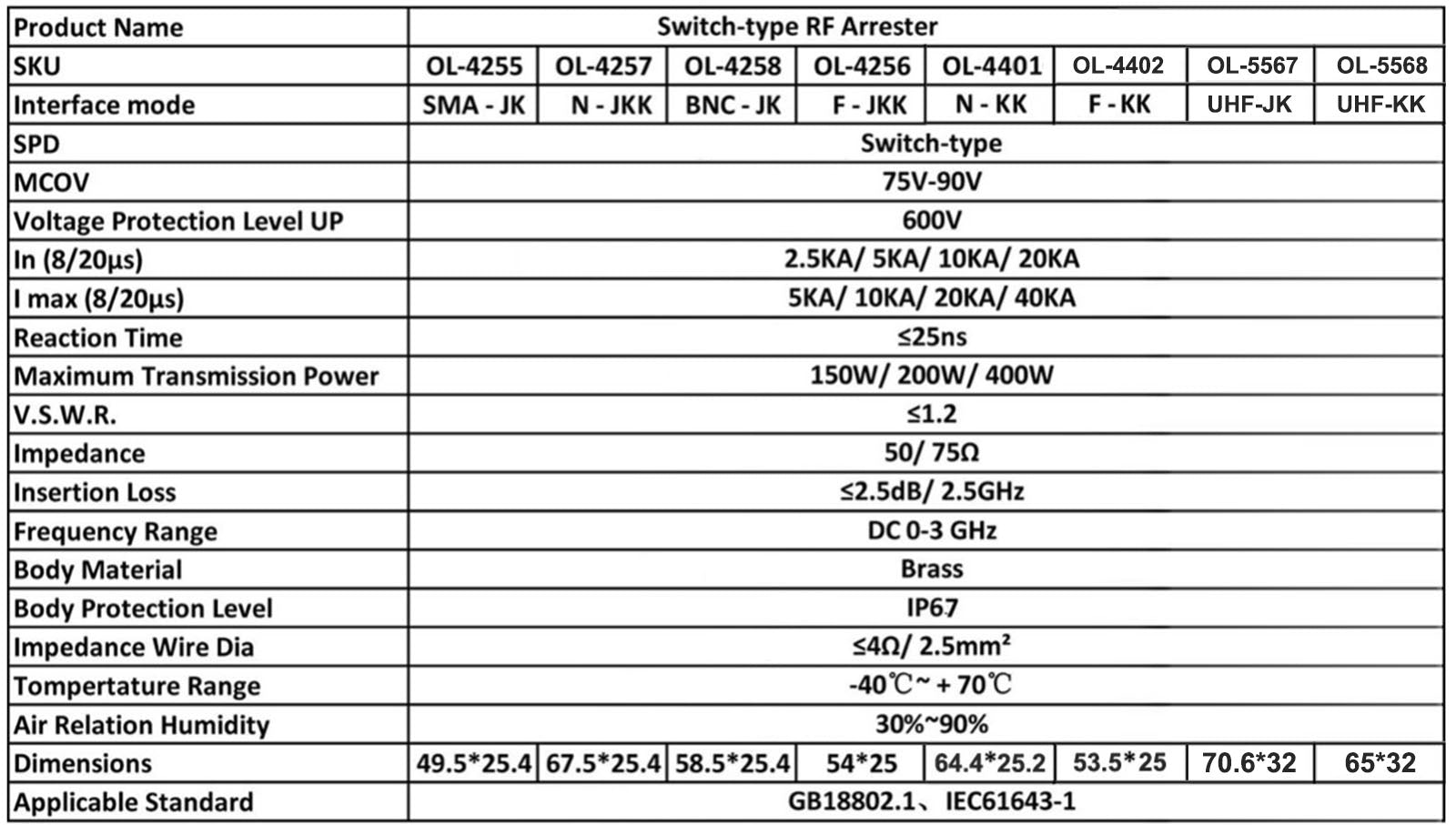

- Frequency Range: DC-3GHz | Discharge Voltage: DC90V | Impedance: 50 ohms | Insertion Loss: <0.1 dB| Max Power: 50W | Max surge voltage let through:200 mV

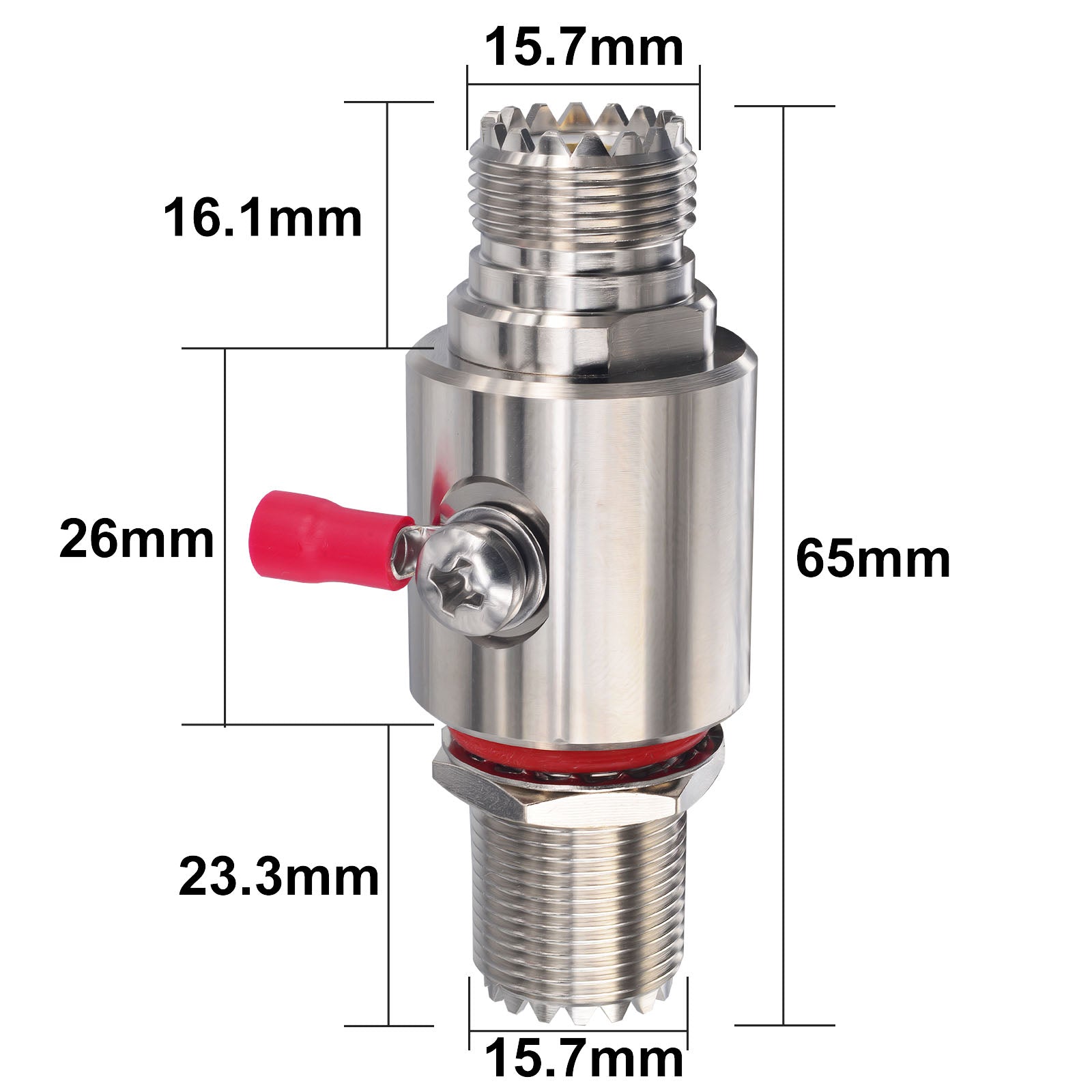

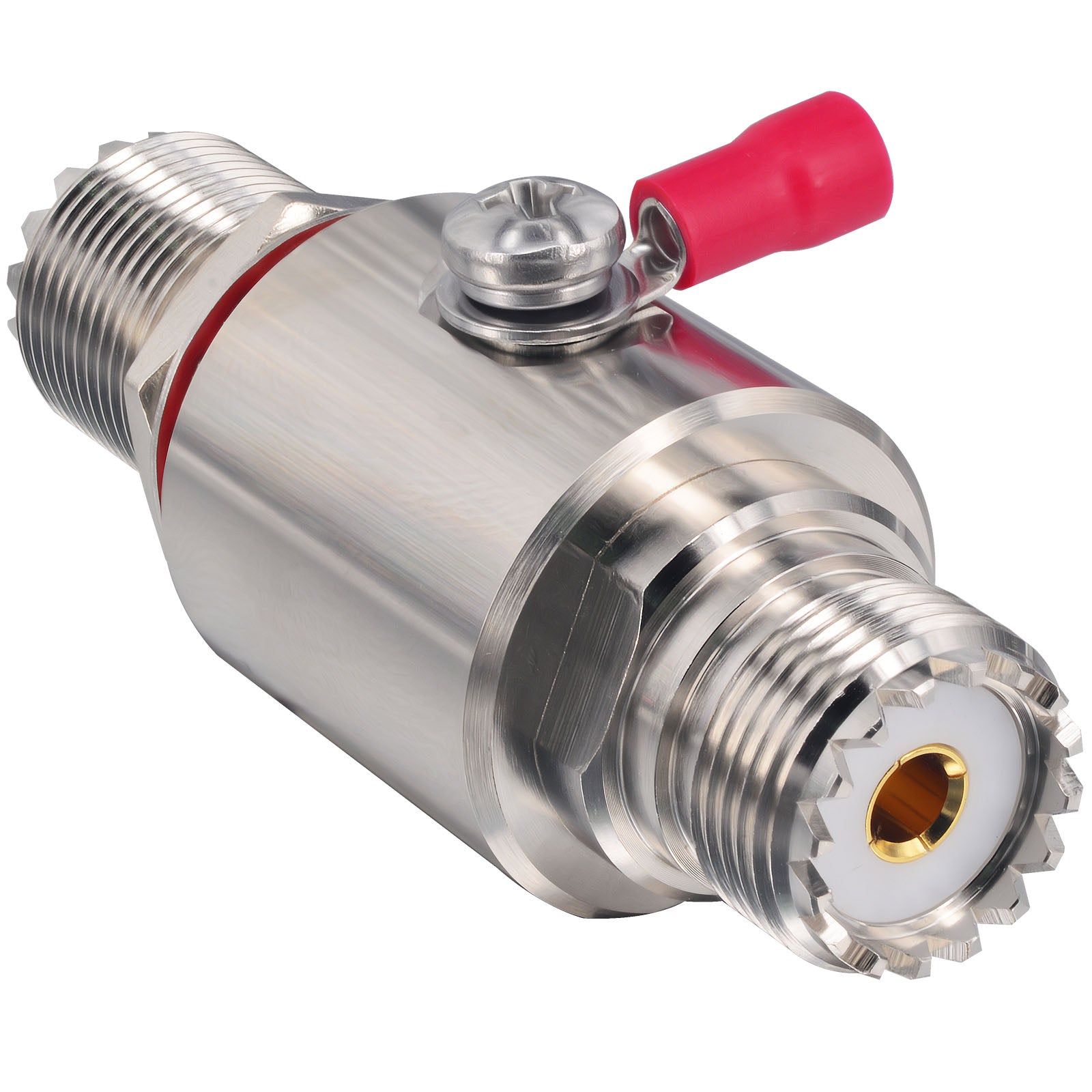

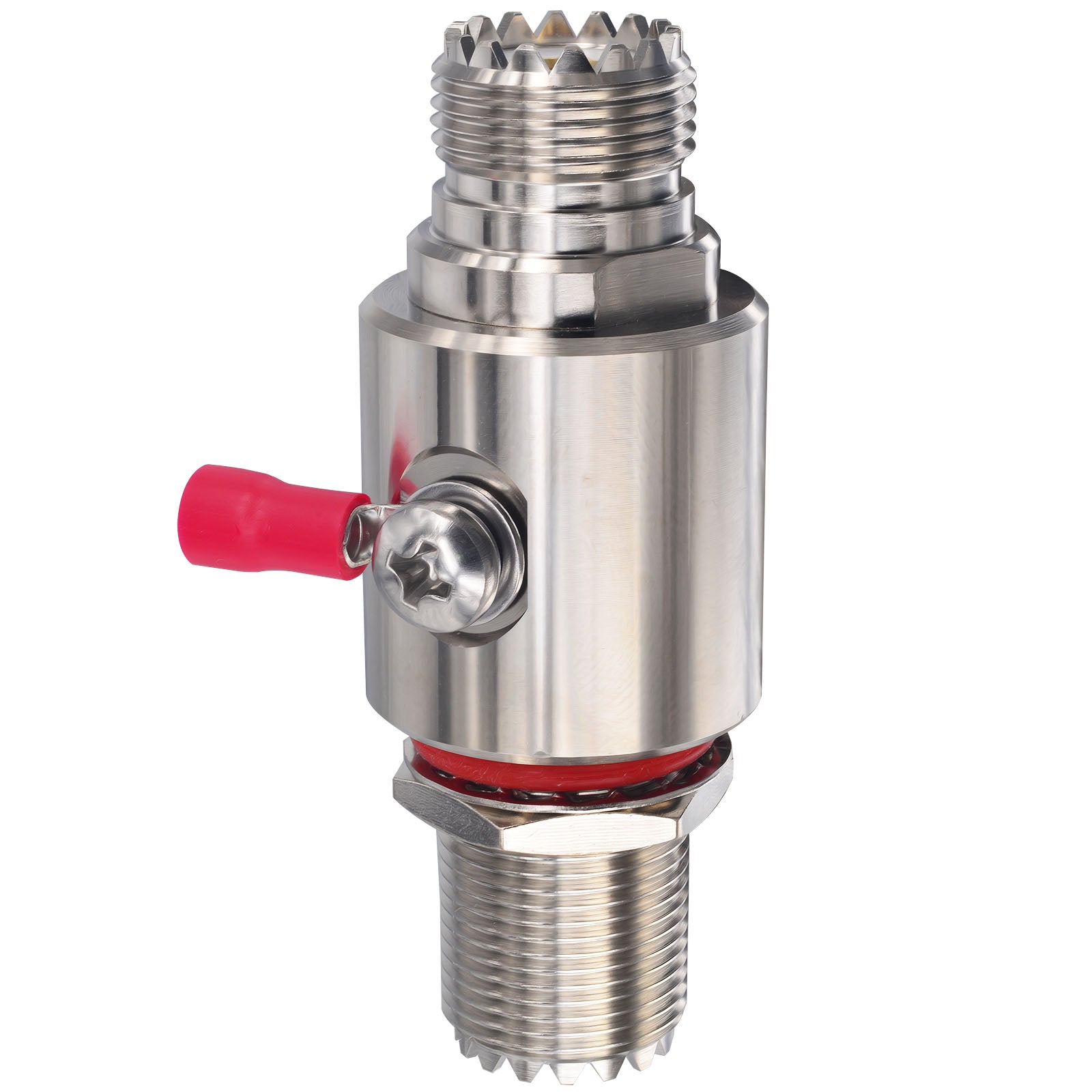

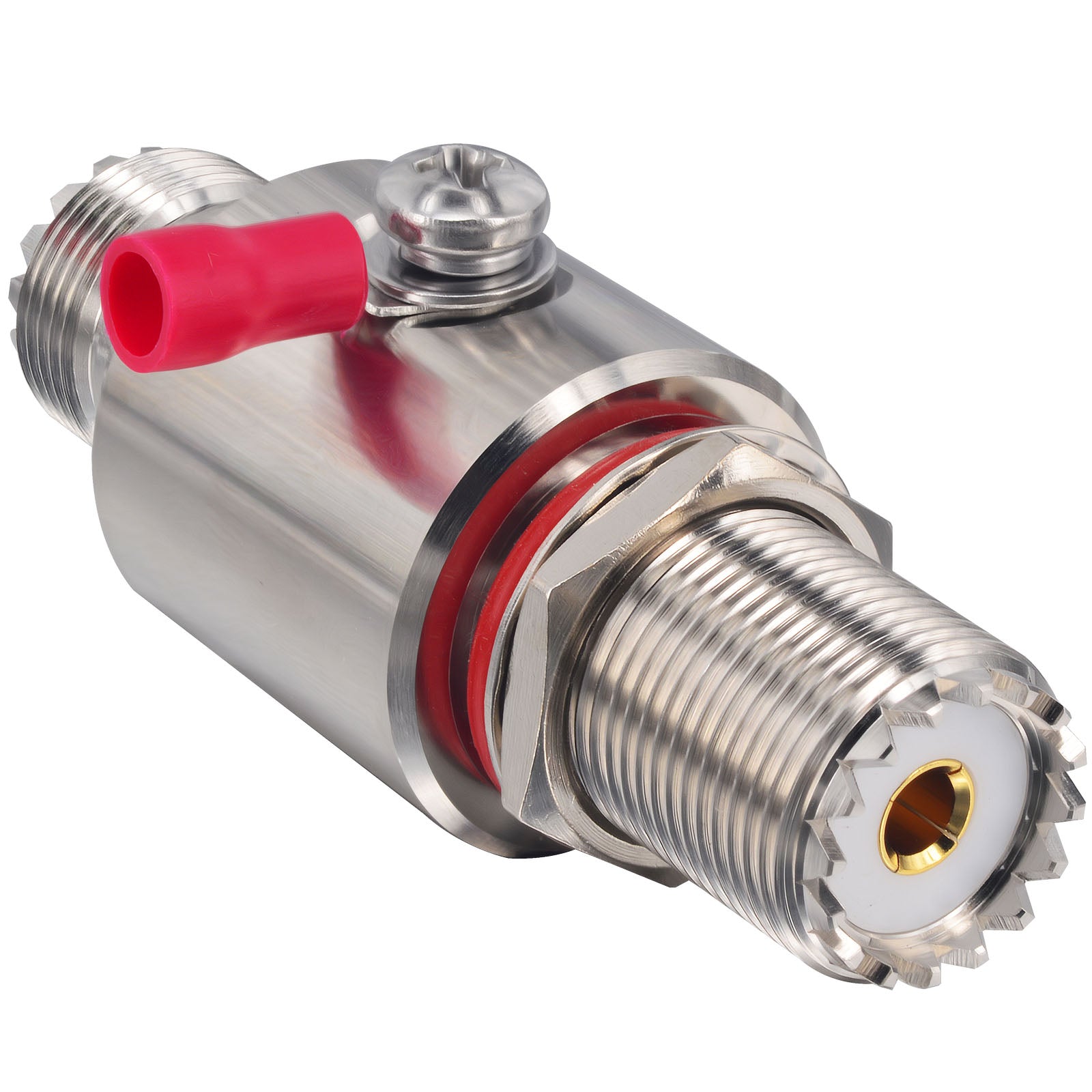

- Coaxial UHF Lightning Arrester,SO239 UHF Female TO SO239 UHF Female ,SO239 Lightning surge protector for Coaxial cable. With ground screw connection for easy install
- Coaxial UHF arrester also known as surge protector, surge divider. It is usually connected between the grid wire and the ground wire, ham radio accessories, sometimes it is also connected next to the electrical winding or between the wires.
- A great UHFSO239 arrestor to protect your life, protectors offer HF/VHF/UHF other frequency equipment with extremely low loss.They boast an insertion loss of less than 0.1 dB. Ideal for CB Radio, HAM Radio Gear, 2-Way Base Stations
- Arresters should be installed as close as possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection
